SANDWICH PANELS

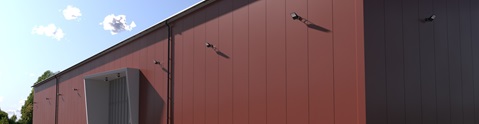

Sandwich panels for external walls
Our sandwich panels for external walls ensure long-lasting, airtight and energy efficient envelope for all building types. From our extensive range of wall panels with a mineral wool or PIR core you can choose the best solution for your premises, no matter if it is a warehouse, logistics center, production plant, office or commercial center. Our portfolio also includes sandwich panels with technical features dedicated to cold storage or agricultural buildings. Our products come with all needed accessories and enabling safe, fast and easy installation.
- Ruukki® Strong Panels with increased load-bearing capacities and longer spans

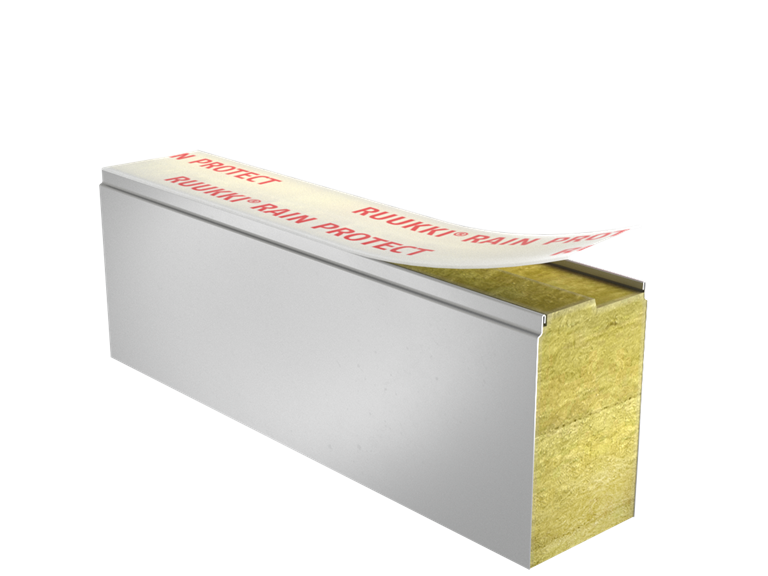

- Ruukki® Energy Panels featuring extra solutions for guaranteed air-tightness and energy savings.
- Intruder resistant panels ensuring higher anti-burglary security. Read more about intruder safety.
- Ruukki® Life Panels with recycled glass content
- FM approved sandwich panels for the highest fire &strength safety levels
- Ruukki® Patina sandwich panel includes same excellent properties as Ruukki® Energy and Ruukki® Life panels, but its steel is made of natural Cor-Ten®
Wide range of our sandwich panels are available as Ruukki® LowCarbon.
Patented moisture safe plinth solution for Ruukki sandwich panels
The foundation for sandwich panel wall, having thermal insulation, water barrier and passage characteristics, is patented.

Get inspired with our Sandwich Panel visualization tool
With our interactive Visualization tool for Ruukki sandwich panels, you can easily explore and customize the perfect combination for your building project.
Go to visualization toolRead also about our life-cycle approach
PRODUCT OFFERING
Choose the best sandwich panel for your needs from our offering below
Product Lines
Fire resistance
Reaction to fire
Sustainable choice
Core material
-
Product
-
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material
-

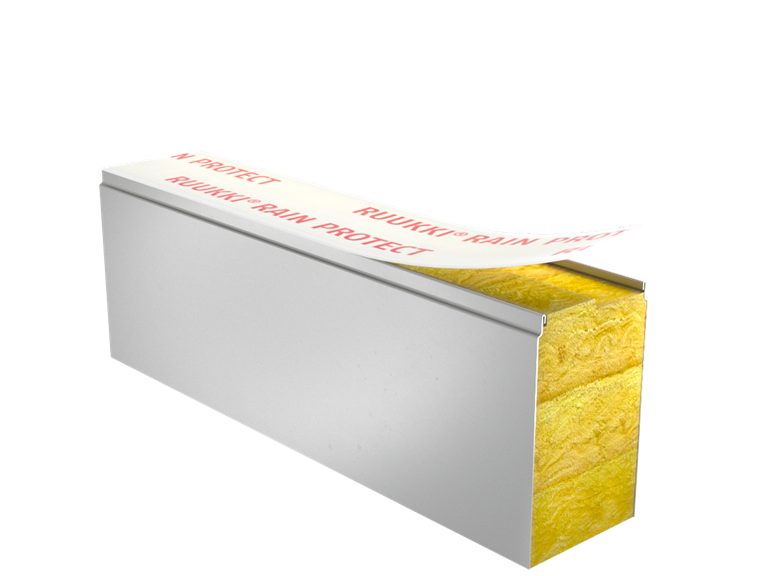

Sandwich panel SPA E Life for external wall
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.25 - 0.16VisibleEI 30 - 60A2-s1, d0Mineral wool -
Sandwich panel SPA EE for external walls
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material202 - 3000.18 - 0.12VisibleEI30 - 180A2-s1. d0Mineral wool -
Sandwich panel SPA E for external wall
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 2300.40 - 0.17VisibleEI30 - 180A2-s1, d0Mineral wool -
Sandwich panel SPA F for external and internal wall
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.29 - 0.19VisibleEI30 - 240A2-s1,d0Mineral wool -
Sandwich panel SPA S for external wall and ceiling
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 2300.45 - 0.19VisibleEI30 - 240A2-s1, d0Mineral wool -
Sandwich panel nSPB WEE
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 2300.37 - 0.16VisibleEI30 - 120A2-s1, d0Mineral wool -
Sandwich panel nSPB WE
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material80 - 2300.55 - 0.17VisibleEI30 - 180A2-s1, d0Mineral wool -
Sandwich panel nSPB W
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material80 - 2300.51 - 0.18VisibleEI30 - 180A2-s1, d0Mineral wool -
Sandwich panel nSPB WF
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 2300.37 - 0.18VisibleEI60 - 240A2-s1, d0Mineral wool -
Sandwich panel SPA E Life Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material200 - 2300.19 - 0.16VisibleEI30 - 60A2-s1, d0Mineral wool -
Sandwich panel SPA EE Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material202 - 3000.18 - 0.12VisibleEI30 - 180A2-s1. d0Mineral wool -
Sandwich panel nSPB WS
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 2300.44 - 0.19VisibleEI30 - 180A2-s1, d0Mineral wool -
Sandwich panel SPA E Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material200 - 2300.20 - 0.17VisibleEI30 - 180A2-s1. d0Mineral wool -

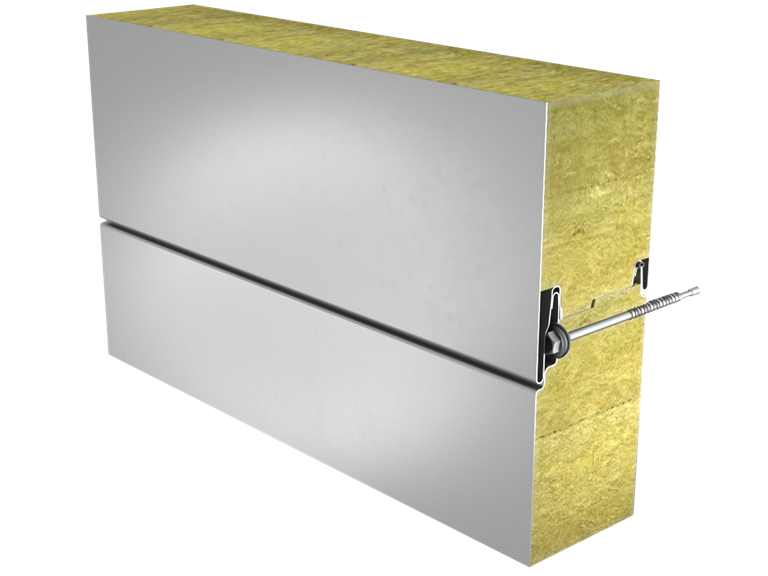

Sandwich panel nSPD WE
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 2300.39 - 0.17HiddenEI30 - 180A2-s1,d0Mineral wool -
Sandwich panel SPA F Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material200 - 2300.22 - 0.19VisibleEI30 - 240A2-s1, d0Mineral wool -
Sandwich panel SPA S Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material200 - 2300.22 - 0.19VisibleEI30 - 240A2-s1, d0Mineral wool -
Sandwich panel nSPB WEE Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.25 - 0.16VisibleEI30 - 120A2-s1, d0Mineral wool -
Sandwich panel SP2B X-PIRS
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 1500.22 - 0.14VisibleEI15 - 20B-s1,d0X-PIR -
Sandwich panel SP2B X-PIR
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 1500.22 - 0.14VisibleEI15 - 20B-s1,d0X-PIR -
Sandwich panel nSPB WE Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.26 - 0.17VisibleEI30 - 180A2-s1, d0Mineral wool -
Sandwich panel SP2E X-PIRS
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 1600.18 - 0.14VisibleEI15 - 30B-s1,d0X-PIR -
Sandwich panel SP2E X-PIR
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 2000.18 - 0.11VisibleEI15 - 60B-s1,d0X-PIR -
Sandwich panel nSPB W Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.28 - 0.18VisibleEI30 - 180A2-s1, d0Mineral wool -
Sandwich panel nSPB WF Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.28 - 0.18VisibleEI60 - 240A2-s1, d0Mineral wool -

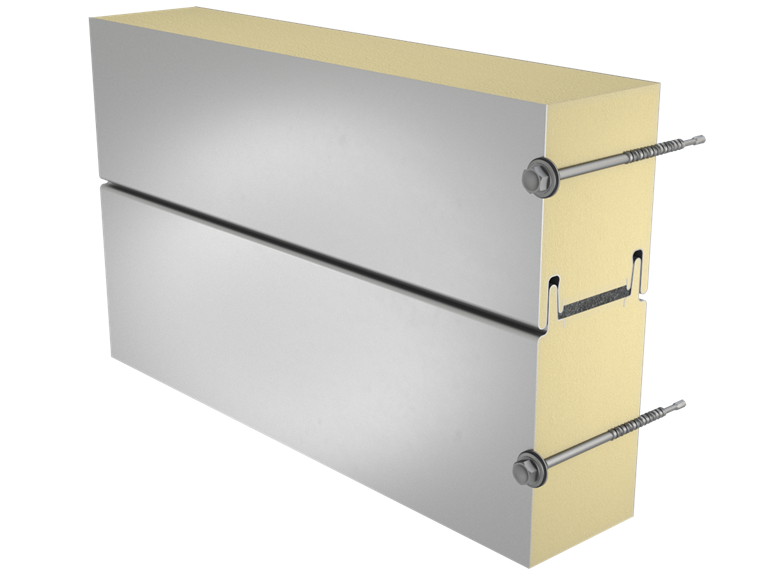

Sandwich panel SP2B E-PIRE
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material80 - 1200.27 - 0.18VisibleEI15B-s2,d0E-PIR -
Sandwich panel SP2B E-PIR
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material40 - 1500.56 - 0.14VisibleEI15 - EI20B-s2, d0E-PIR -
Sandwich panel nSPB WS Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.29 - 0.19VisibleEI30 - 180A2-s1, d0Mineral wool -
Sandwich panel SP2B E-PIRS
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material80 - 1500.27 - 0.14VisibleEI15 - EI20B-s2, d0E-PIR -
Sandwich panel SP2E E-PIR
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 2000.18 - 0.11VisibleEI15 - 30B-s2, d0E-PIR -
Sandwich panel SP2B X-PIRS Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 1500.22 - 0.14VisibleEI15 - 20B-s1, d0X-PIR -
Sandwich panel SP2E E-PIRS
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 1600.18 - 0.14VisibleEI15 - 30B-s2, d0E-PIR -
Sandwich panel SP2B X-PIR Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 1500.22 - 0.14VisibleEI15 - 20B-s1, d0X-PIR -
Sandwich panel SP2E X-PIRS Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 1600.18 - 0.14VisibleEI15 - 30B-s1, d0X-PIR -

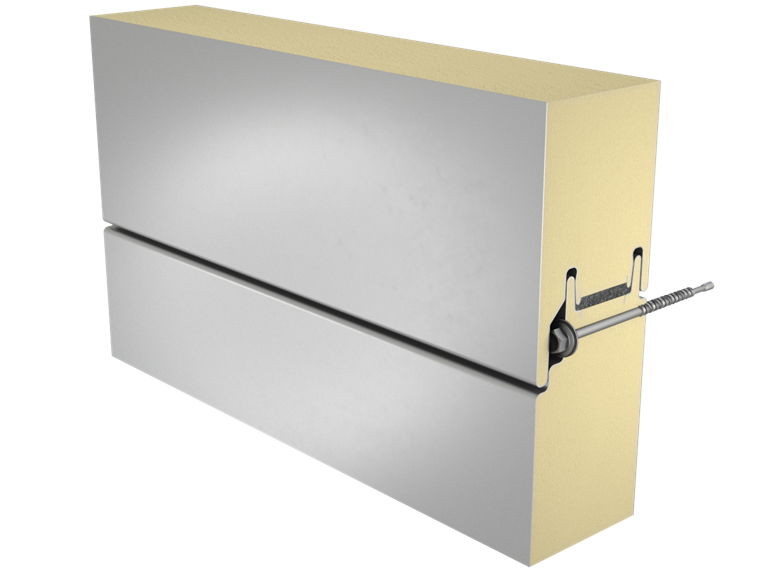

Sandwich panel SP2D E-PIR
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material60 - 1200.38 - 0.18HiddenEI15B-s2, d0E-PIR -
Sandwich panel SP2E X-PIR Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 2000.18 - 0.11VisibleEI15 - 60B-s1, d0X-PIR -
Sandwich panel SP2E E-PIRS Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 1600.18 - 0.14VisibleEI15 - 30B-s2, d0E-PIR -
Sandwich panel SP2B E-PIRS Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 1500.22 - 0.14VisibleEI15 - EI20B-s2, d0E-PIR -
Sandwich panel SP2B E-PIR Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material100 - 1500.22 - 0.14VisibleEI15 - EI20B-s2, d0E-PIR -
Sandwich panel SP2E E-PIR Energy
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material120 - 2000.18 - 0.11VisibleEI15 - 30B-s2, d0E-PIR -
Ruukki® Firewall System 200.1 and 230.1
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material200 and 2300.22 and 0.19VisibleEI-M30 - 120A2-s1,d0Mineral wool -

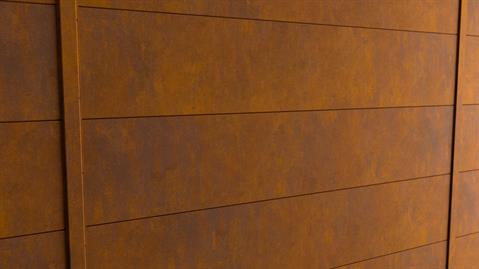

Sandwich panel nSPB WE Patina
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.26 - 0.17VisibleEI30 - 90A2-s1, d0Mineral wool -
Sandwich panel SPA E Life Patina
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.25 - 0.16VisibleEI30 - 60A2-s1, d0Mineral wool -
Sandwich panel SPA F Patina
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.29 - 0.19VisibleEI30 - 120A2-s1, d0Mineral wool -
Sandwich panel SPA EE Patina
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material202 - 2300.18 - 0.16Visible-A2-s1. d0Mineral wool -
Sandwich panel SPA E Patina
Thickness (mm)U-ValueFastening styleFire resistanceReaction to fireCore material150 - 2300.26 - 0.17VisibleEI30 - 90A2-s1. d0Mineral wool
BIM-OBJECTS
BIM-objects

Download BIM objects to your desktop
ProdLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCAD, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is constantly up to date. ProdLib can also be used as a standalone desktop application.
Go to BIM libraryCALCULATION TOOLS
Calculation tools

Traypan® software for designing sandwich panels
With TrayPan®, you can design metal faced sandwich panels made by Ruukki. A panel structure can be designed as a single- or multi-span construction. You can easily give, with a few parameters, both suction and pressure loads caused by the wind. The application also calculates the necessary fasteners.
Go to Traypan®DOWNLOADS
Downloads

Sandwich panel support documents
From here you can find all necessary documents related to Ruukki's sandwich panels.
Go to support documentsRelated links

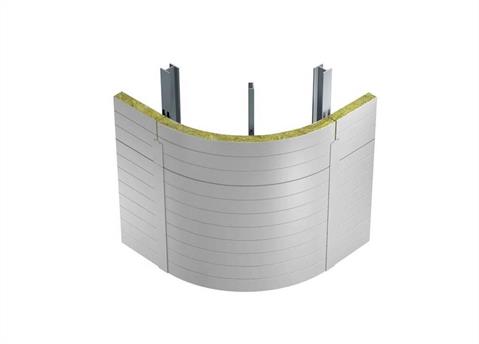

Design Panels – sandwich panel facades don’t have to be boring!
Sandwich panel facades don’t have to be boring thanks to architectural solutions with curved geometry – Design Panels from Ruukki. Different angles and bending radii enable designing of unique facade shapes and lines. Design Panels are suitable for both vertical and horizontal installation.
Check our offering and find a panel that matches your design ideas and ensures a unique architectural effect

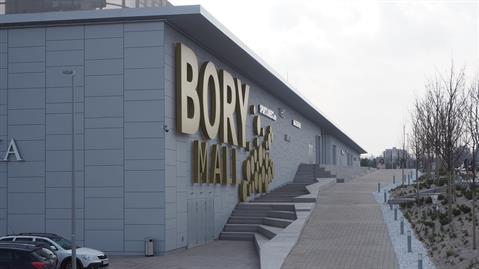

Sandwich panel references
Check our sandwich panel references. You can filter the results by sandwich panel product line and by building types.
Go to sandwich panel referencesCONTACT INFORMATION
Contact us
CONTACT REQUEST
Why we are collecting and processing personal data? Please check our Privacy Statement.
Wall structure product offering

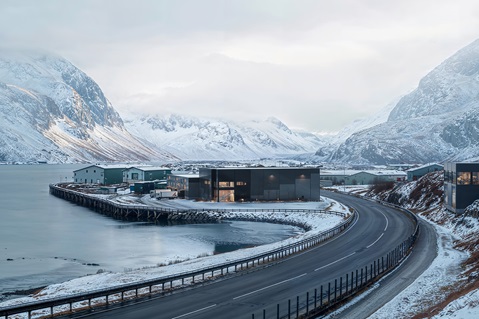

Ruukki® Arc - sandwich panels for the demanding environments of the Nordics
Ruukki® Arc's PIR panels stand out for their high thermal performance, allowing for the construction of thinner walls without compromising insulation capabilities.
Read more about Ruukki® Arc

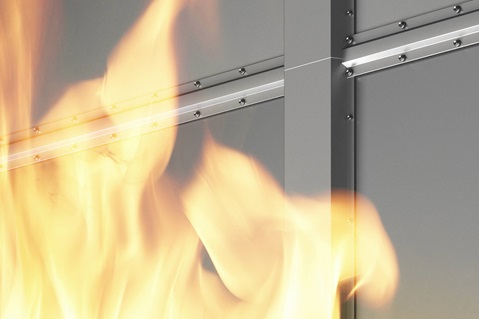

Ruukki® Firewall system. Safety for people and buildings.
Lightweight, cost-effective fire-partitioning solution for industrial and commercial buildings. In the event of fire, Ruukki® Firewall System prevents the spread of fire to other parts in a building, or to next building.
Read more about Ruukki® Firewall System
Sandwich panels for internal walls and ceilings
Partition walls and ceilings made of Ruukki’s sandwich panels with a mineral wool or PIR core ensure thermal and noise insulation for comfortable indoor conditions.
Read more about sandwich panels for internal walls and ceilings
Timeless elegance. Innovative sandwich panel.
Ruukki® Patina brings top-class properties, elegance and timelessness to buildings. Consequently, the lifetime of the building is longer and the carbon footprint is lower. Ruukki® Patina is made of untreated Cor-Ten® steel.
Read more about Ruukki® Patina
Design Panels – sandwich panel facades don’t have to be boring!
Sandwich panel facades don’t have to be boring thanks to architectural solutions with curved geometry – Design Panels from Ruukki. Different angles and bending radii enable designing of unique facade shapes and lines. Design Panels are suitable for both vertical and horizontal installation.
Check our offering and find a panel that matches your design ideas and ensures a unique architectural effect
Complete wall systems
Ruukki Forma® is a complete exterior wall system, combining our facade cladding products with our highly energy efficient sandwich panels. The sandwich panels are also available in the highly sustainable Ruukki Life panel version, with approximately 80% recycled material content.
Read more about complete wall systems
Light weight purlins for walls
Lightweight purlin systems make building construction fast and easy, allowing you to build the envelope and exterior wall with little effort.
Read more about light weight purlins for walls

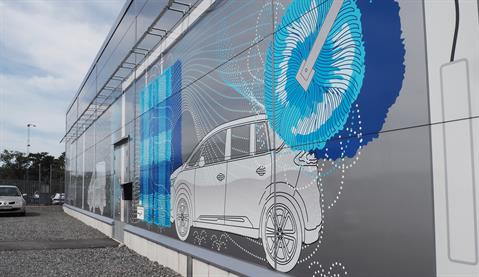

Taped pictures on walls
