Perforation & backlighting - Ruukki® Emotion

Ruukki® Emotion is a complete facade system that consists of perforated cladding products and a support structures, with an integrated back lighting system.

The integrated system allows you to concentrate on architecture while we support you with:

  • Technical details
  • One expert to talk to
  • Predictable pricing from early design to final procurement
  • Solutions for all buildings, from large projects to smaller ones.

Playing with perforation and light

A wide range of perforation options, from full perforation to freely-designed art perforation, provides unlimited design options. Combine these with either a plain white backlighting or programmable coloured backlighting, and bring your facade to life.

Ruukki emotion_3D_Liberta500_night_white

Playing with dimensions

Photo© Maris Tomba

Ruukki Emotion

Art perforation

Is there a picture, pattern or shape you would like to have on your facade? Just send us the picture or drawing of your idea, and we’ll come back with a proposal as to how it would look when perforated on your facade. You will be amazed what we can create by using different perforation styles! Combine your pattern with light, and your facade will start living at nighttime! Art perforation is available for our rainscreen panels and cladding lamellas.

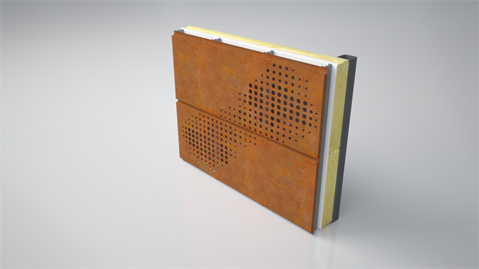

Ruukki emotion_3D_Liberta500_daylight

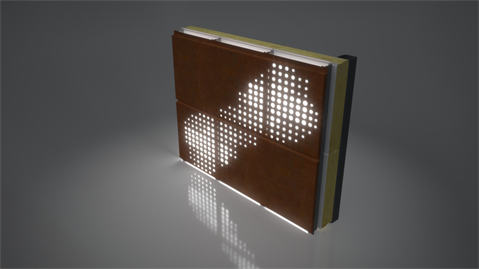

Ruukki emotion_3D_Liberta500_night_white

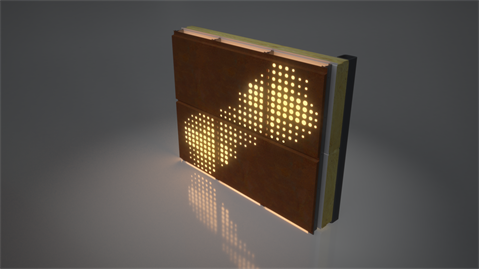

Ruukki emotion_3D_Liberta500_night_orange

Symmetrical perforation

Do you prefer a simpler symmetrical perforation on your facade? Just choose the perforation hole size and centres, and that’s it! Combine your facade with light, which will bring a whole new dimension when the sun starts to set. Symmetrical perforation is available for our rainscreen panels and cladding lamellas.

Ruukki emotion_3D_Lamella70_daylight

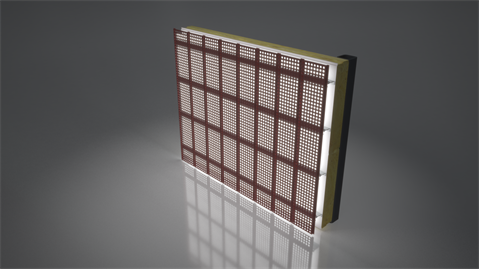

Ruukki emotion_3D_Lamella70_night_white

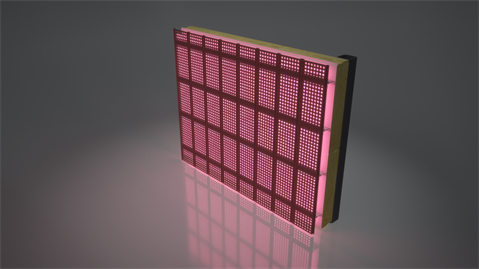

Ruukki emotion_3D_Lamella70_night_red

Full perforation

Would you like to have a full perforation on your corrugated sheet facade? Choose your favourite one from our three pre-designed, cost-efficient options (perforation rates: 10%, 15% or 30%). Add light and create a ‘see-through’ facade that truly stands out - even on simple buildings. Full perforation is available for our design profiles.

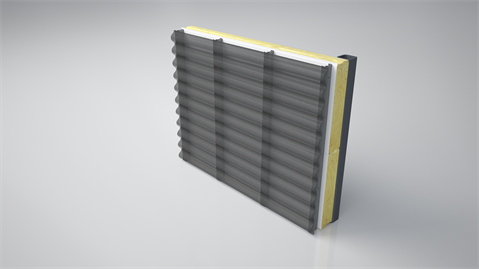

Ruukki emotion_3D_Design Paris_daylight

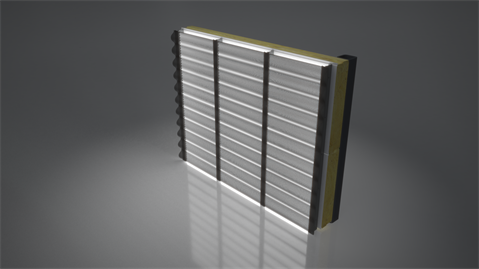

Ruukki emotion_3D_Design Paris_night_white

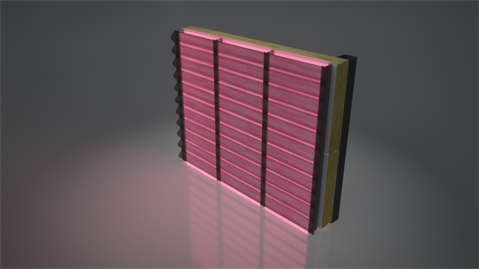

Ruukki emotion_3D_Design Paris_night_red

Backlighting

Ruukki® Emotion’s innovative backlighting system is integrated into the cladding support system. Lights are based on the latest high quality LED technology, which uses only a fraction of energy compared to traditional lights. The backlighting system comes with a warranty and 50,000-hour anticipated lifetime. Moreover, both the LEDs and the power units can be easily replaced when needed.

Backlighting is available in two options:
  • Coloured backlighting: lighting can be programmed to change colour as well as brightness
  • White backlighting: light is always white and is connected to the building automation system.
Both coloured and white backlighting systems can be used with all perforation options: art perforation, symmetrical perforation and full perforation.

Perforation & backlighting references

    Contact us

    Getting in touch with us is easy. Just choose your country and we will help you look beyond what is - to what it could be!

    form

    Why we are collecting and processing personal data? Please check our Privacy Statement.

    Facade cladding offering

    Primo-main_1920

    Ruukki® Primo panels

    Ruukki® Primo panels are aimed for premium façade segment, e.g. hotels and offices in urban environment. Panels are folded on all sides and are available with both concealed and visible fixing solutions. Primo panels are available in big product sizes and have excellent surface flatness.

    Read more about Ruukki® Primo

    Ruukki Liberta® panels

    Ruukki Liberta® panels are folded on all sides to offer maximum rigidity for solid metal cassettes with both concealed and visible fixing solutions. The panels come in an extensive selection of materials, finishes and colours.

    Read more about Liberta® panels

    Lamellas

    Lamellas are narrower profiles that are folded along two long edges and divide facade surfaces one-directionally. Variety of shapes in the long edge detail together with visible and concealed fixings allow you to accentuate the surface division to just the right amount.

    Read more about Lamellas
    wood-mizer2

    Design profiles

    Design profiles create a continuous, structured facade surface. With options for both profile and material, the scale and attenuation of the surface structure can be matched to meet the architectural needs of the facade in question.

    Read more about Design profiles
    low-profile-sheets

    Other profiles

    Available in a range of shapes, coatings and colours, low-profiled sheets offer many design opportunities for a variety of commercial and industrial buildings’ facade and internal lining. Easy and fast to assemble, low-profiled sheets are a perfect choice when speed of construction and functionality is key.

    Read more about other profiles

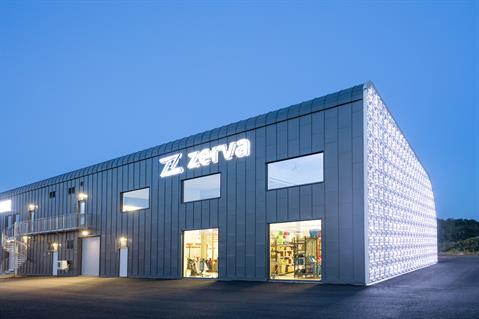

    Zerva
