Ruukki T130M & T153 - 3/15 web perforated - PIR

Load bearing T130M & T153 profile with web perforation is a classical solution to improve roof absorption properties. Solution is integrated and efficient as normal mineral wool layers above the sheeting are utilized for sound absorption indoors.

This solution is optionally available with following sustainable features:

Steel facings made of recycled steel (SSAB Zero) for significantly lower CO₂ emissions and high circularity (Ruukki LowCarbon)

Save this product information as PDF

Send contact request

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

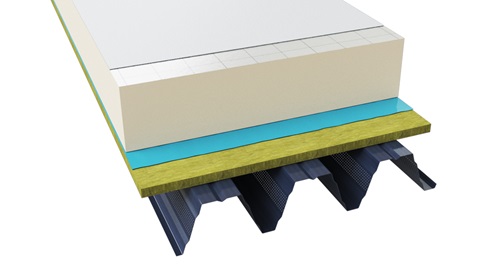

Structure

T130M & T153 (web perforated 3 mm/15%)
Absorption layer: Mineral wool 30 mm, density > 120 kg/m³
Vapor barrier, e.g. PE, t= 0,2 mm
PIR insulation 130...220 mm, density 30...40 kg/m
Upper layers and roof membrane according to project

Sound absorption values

Absorption coefficient and class for construction

Class D, α_w 0,30

f(Hz)	α_p 1/1
125	0,40
250	0,70
500	0,80
1000	0,40
2000	0,30
4000	0,25

Design tools

Ruukki Acoustic Estimator

Try our estimator for your next project. With our estimation tool you can calculate which product configuration provides you with optimal results.

Go to estimation tool here

Poimu software for dimensioning load-bearing sheets

Dimensioning software, Poimu, allows you to optimise product choice according to the Eurocode. Simply by defining some basic input data you can select a load-bearing sheet for their needs from Ruukki's selection. This quick optimisation tool covers 1-, 2-span and continuous structures and gives the exact solution as to what sheet should be used, as well as its length.

Go to Poimu software

Download BIM objects to your desktop

ProdLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCAD, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is constantly up to date. ProdLib can also be used as a standalone desktop application.

Go to BIM library
