Ruukki T130M & T153 - 3/15 web perforated + infill -Mineral wool

Load bearing T130M & T153 profile with web perforation is a classical solution to improve roof absorption properties moderately. Solution is integrated and efficient as normal mineral wool layers above the sheeting are utilized for sound absorption indoors.

Infill product in the profile groove improves sound absorption coefficient about 10 % and it improves also roof thermal insulation properties.

This solution is optionally available with following sustainable features:

  • Steel facings made of recycled steel (SSAB Zero) for significantly lower CO2 emissions and high circularity (Ruukki LowCarbon)



The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

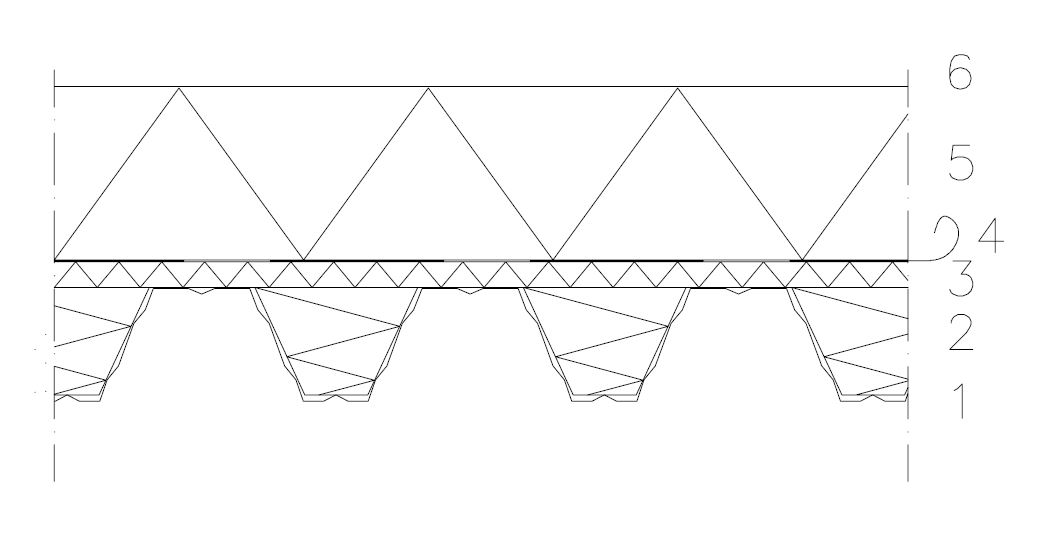

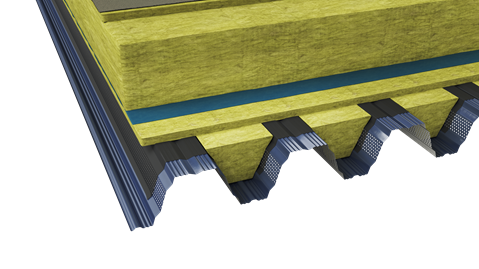

Structure

  1. T130M & T153 (web perforated 3 mm/15%)
  2. Dust proofed acoustic infill, mineral wool, filling the groove, density 120...150 kg/m3
  3. Absorption layer: Mineral wool 30 mm, density > 120 kg/m3
  4. Vapor barrier, e.g. PE, t= 0,2 mm
  5. Mineral wool 130...400 mm, density > 70 kg/m3
  6. Upper layers and roof membrane according to project

Sound absorption values



Absorption coefficient and class for construction

Class D, αw 0,45



f(Hz)
αp
1/1
1250,95
2501,00
5001,00
10000,60
20000,40
40000,35
