Ruukki T153Acub 4/30 Web and flange perforated + infill - PIR

Load bearing T153 profile with web and flange perforation is a top class solution to improve roof sound absorption properties to extremely absorbing level. Solution is integrated and efficient as normal mineral wool layers above the sheeting are utilized for sound absorption indoors. There is no need to assemble large amount of sound absorption materials afterwards to cover the ceiling structure for acoustic reasons.

Infill product in the profile groove improves sound absorption coefficient about 10 % to reach sound absorption class A level, αw = 0.9.  It improves also roof thermal insulation properties.

This solution is optionally available with following sustainable features:

  • Steel facings made of recycled steel (SSAB Zero) for significantly lower CO2 emissions and high circularity (Ruukki LowCarbon)





The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

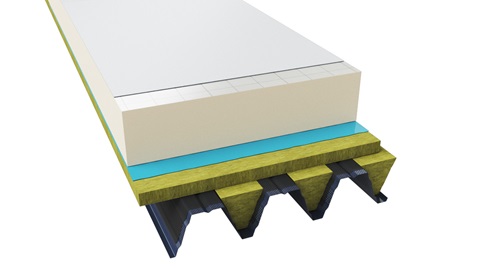

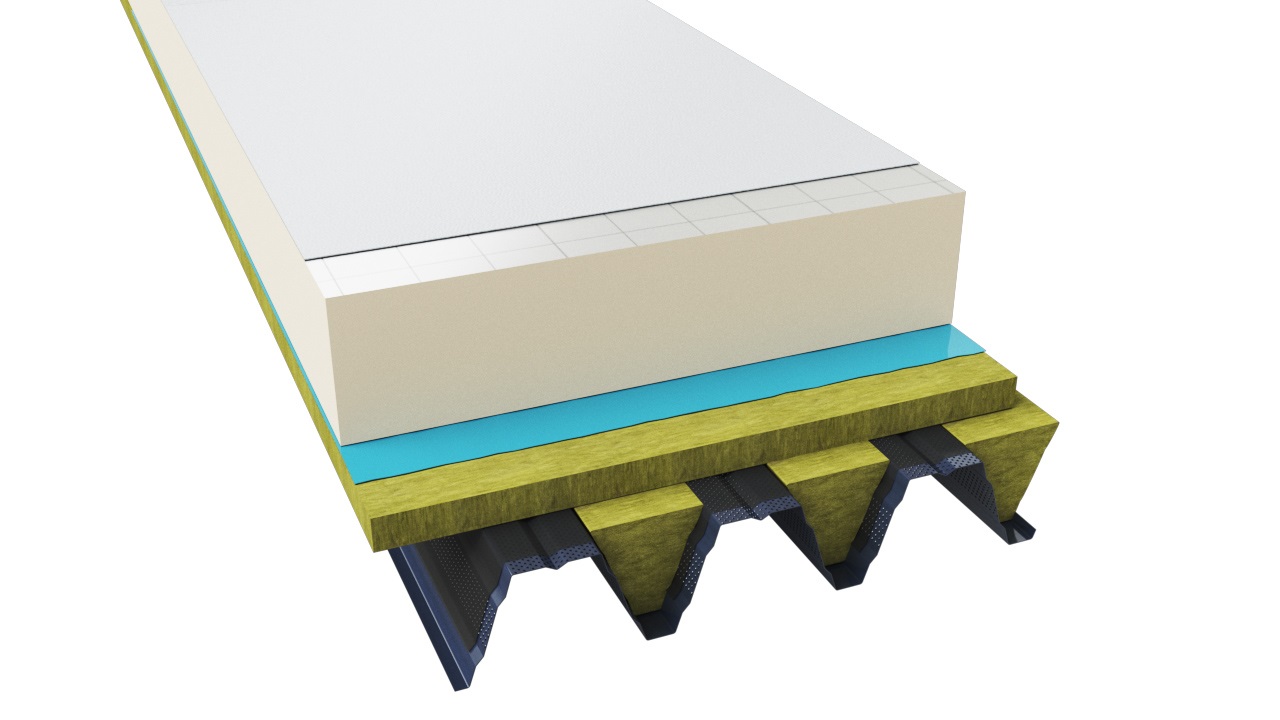

Structure

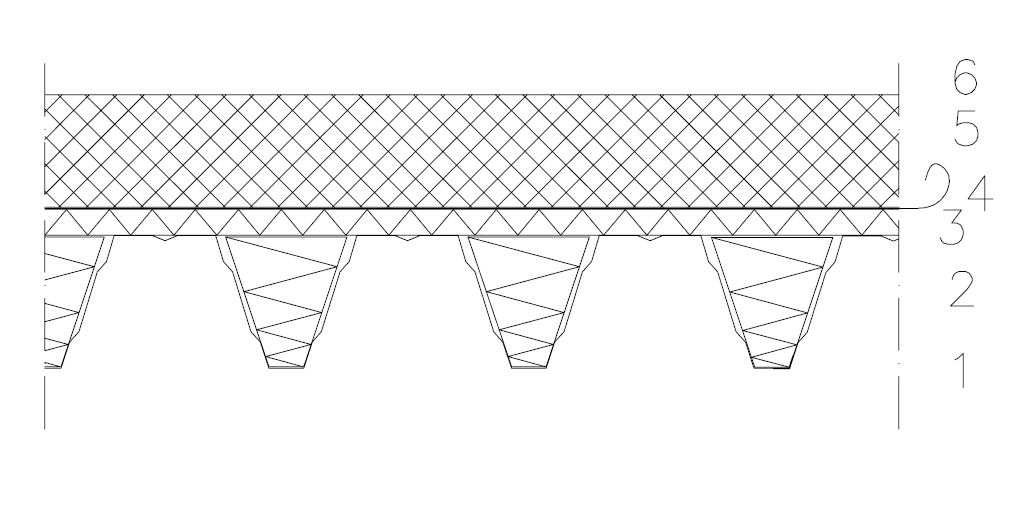

1. T153AcuB (web and flange perforated 4 mm/30%)
2. Dust proofed acoustic infill, mineral wool, filling the groove, density 120...150 kg/m3
3. Absorption layer: Mineral wool 30 mm, density > 120 kg/m3
4. Vapor barrier, e.g. PE, t= 0,2 mm

5. MPIR insulation 130...220 mm, density 30...40 kg/m3
6. Upper layers and roof membrane according to project



Sound absorption values

Absorption coefficient and class for construction

Class A, αw 0,90



f(Hz)
αp
1/1
1250,55
2501,00
5001,00
10000,95
20000,90
40000,75
