Liberta Original 102 Grande
Create a genuine and distinct large scaled layout with the Liberta Original 102 Grande for ventilated steel facade systems.
The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.
Properties

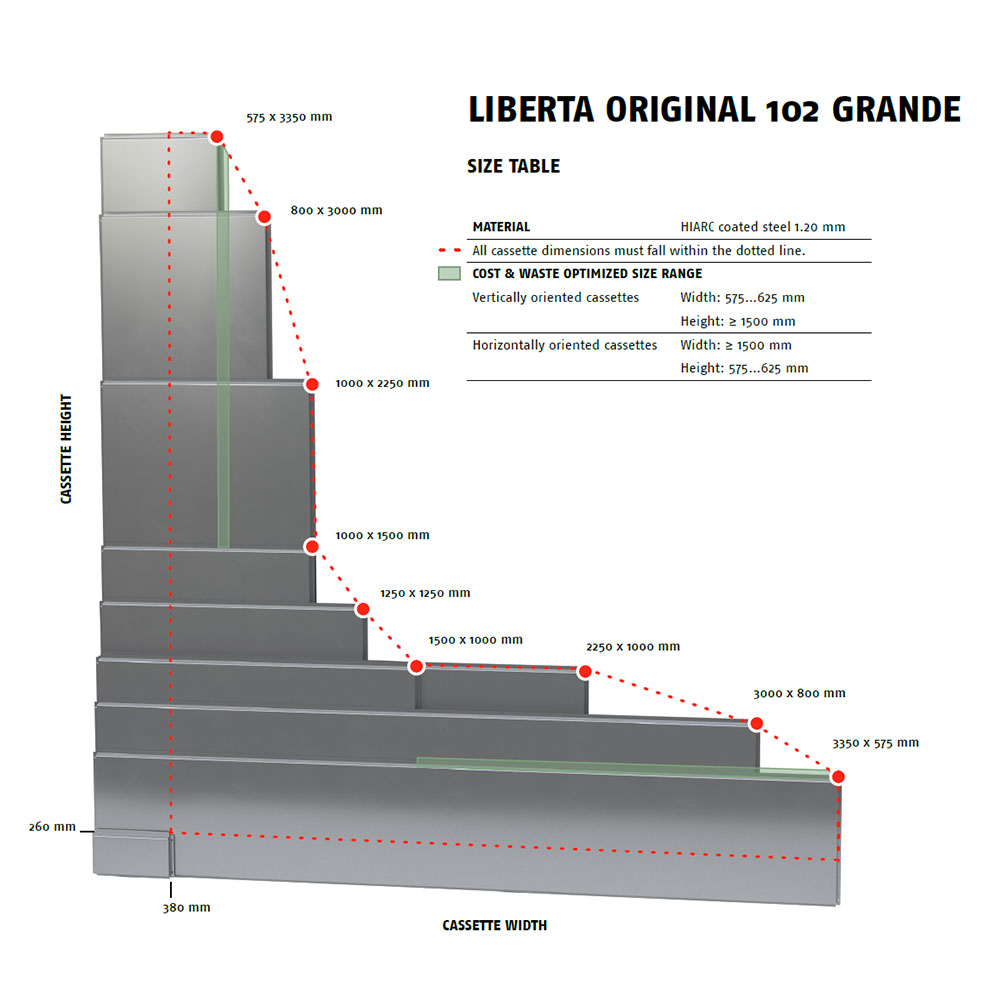

Size table
Click on the picture to see full resolution.
Material:- HIARC coated steel 1.2 mm | ||
 |
Materials
| Material | Material thickness (mm) | Weight (kg/m2) | Surface treatment | GWP A1-A3 (kg CO2 equiv./m2) | Reaction to fire |
| Steel | 1.2 | 13.7 | GreenCoat Pural BT (Satin, Metallic) | 31.7 | A2-s2, d0 |
The panel has a 18 mm thick mineral wool board bonded on the reverse side.
Coatings and colors
GreenCoat Pural BT (Standard colours)
Gloss level: 20 GU (Satin) / 40 GU (Metallic)
Extended colours
BIM objects
Download BIM objects to your desktop
ProdLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCAD, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is constantly up to date. ProdLib can also be used as a standalone desktop application.
Go to BIM libraryDownload documents
Declaration of performance
Order forms
xlsm, 5.1 MB
Maintenance instructions
pdf, 70.3 KB
Accessory documents
pdf, 4.1 MB
References
-
RIMI - A logistics centre in Latvia
The facade of RIMI has Ruukki Liberta® 102 Grande and Design Profile Tokyo S18 cladding. Liberta® 102 Grande is a classic member of design panels used for extra...
-
Centrum Galaxy
Ruukki provided a new façade for Centrum Galaxy in Szczecin, Poland, based on Ruukki Renovation concept. The shopping centre’s new façade has been created by a...
-
DOMINA Shopping Mall in Latvia
Ruukki supplied full envelope solution for renovation project of DOMINA shopping center in Latvia; Load bearing sheets, energy efficient sandwich panels and hi...
-

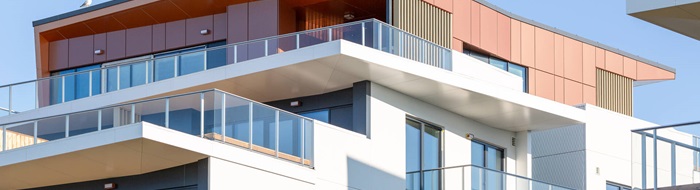

Apartment building in Tallinn, Estonia
The facade of the top floor of this apartment building with a million-dollar view is covered with Ruukki Liberta Original 102 Grande rainscreen panels.
Visualization tool
Visualize your idea
Get inspired on how our façade cladding products come live in a building façade. Find your own combination of surface structures, patterns, colors and materials.
Go to visualization tool
