Liberta Cor-Ten 800
Create a harmonious, rusty layout with Liberta Cor-Ten 800 for ventilated Cor-Ten facade systems.
Ruukki® Emotion
Available also with perforation and backlighting.
The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.
Properties
Perforation layout
Dimension/hole | mm |
a | ≥10 |
b | ≥10 |
c | ≥ d+25 |
d | 16, 20, 30, 40, 50, 60 |
Symmetrical perforation: Fully perforated in symmetrical square layout. Only 1 hole size (d) and distance (a, b, c) per product.
Art perforation: Fully or partly perforated in freely chosen locations. All hole sizes (d) and distances (c) available per product.

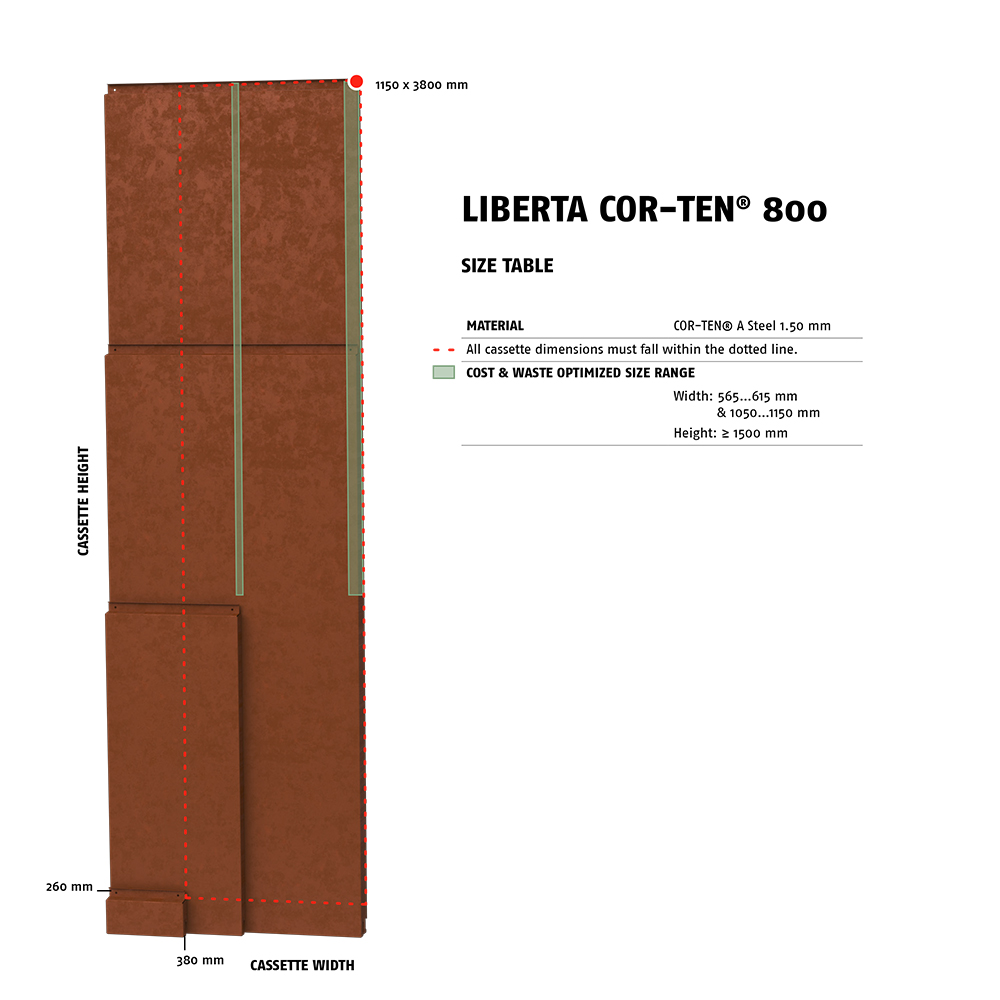

Size table
Click on the picture to see full resolution.
Material:- COR-TEN® A Steel 1.5 mm | ||
![]() |
Materials
Material | Material thickness (mm) | Weight (kg/m2) | Surface treatment | GWP A1-A3 (kg CO2 equiv./m2) | Reaction to fire |
Steel Cor-Ten A * | 1.5 | 13.6 | - | 38.1 | A1 |
Due to its unique chemical composition, Cor-Ten weather-resistant structural steel sheet has a significantly better ability to resist atmospheric corrosion than similar general structural steels. Weather-resistant steel is used in architectural applications without requiring any separate surface treatment. Use of weather-resistant steel thus eliminates the need for surface treatments during the manufacturing and operational periods, in turn lowering the environmental load and costs throughout the product’s life cycle.
The weather resistance of the product is due to its oxide layer i.e. the patina which forms on the steel surface which is resistant to the action of alloys and has low oxygen permeability. The oxide layer is created when weather-resistant steel is wetted and dried repeatedly. The protective surface layer forms in normal weather conditions within 18…36 months. The patina layer is initially reddish brown in colour, becoming darker in tone over the course of time. In industrial environments the patina forms more rapidly on the steel and darkens more than in cleaner rural environments. The protective patina layer cannot form, however, if the surface of the steel is continuously damp or dirty.
Cor-Ten A grade steel is used for the manufacture of panels (S355J0WP-COR-TEN A).
BIM objects

Download BIM objects to your desktop
ProdLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCAD, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is constantly up to date. ProdLib can also be used as a standalone desktop application.
Go to BIM libraryDownload documents
Declaration of performance
pdf, 31.8 KB
Order form
xlsm, 5.1 MB
Maintenance instructions
pdf, 70.3 KB
Accessory documents
pdf, 4.1 MB
References
-

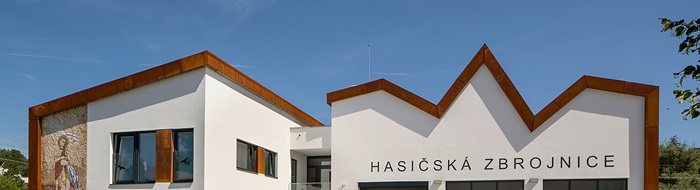

Fire station in Bilovice nad Svitavou, Czech republic
Fire station in Bilovice nad Svitavou combines the traditional with the modern. Ruukki Liberta Cor-Ten 800 rainscreen panels and Lamella Cor-Ten 20 used for the...
-
Private house in Southern Estonia
The inspiration to use Cor-Ten® steel on the façade of the building came from the house of pilgrimage of the Vastseliina bishop's castle. When the house owner s...
