Liberta Cor-Ten 600
Create a harmonious, rusty layout with Liberta Cor-Ten 600 for ventilated Cor-Ten facade systems.
Ruukki® Emotion
Available also with perforation and backlighting.
The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.
Properties

Perforation layout
Dimension/hole | mm |
a | ≥10 |
b | ≥10 |
c | ≥ d+25 |
d | 16, 20, 30, 40, 50, 60 |
Symmetrical perforation: Fully perforated in symmetrical square layout. Only 1 hole size (d) and distance (a, b, c) per product.
Art perforation: Fully or partly perforated in freely chosen locations. All hole sizes (d) and distances (c) available per product.

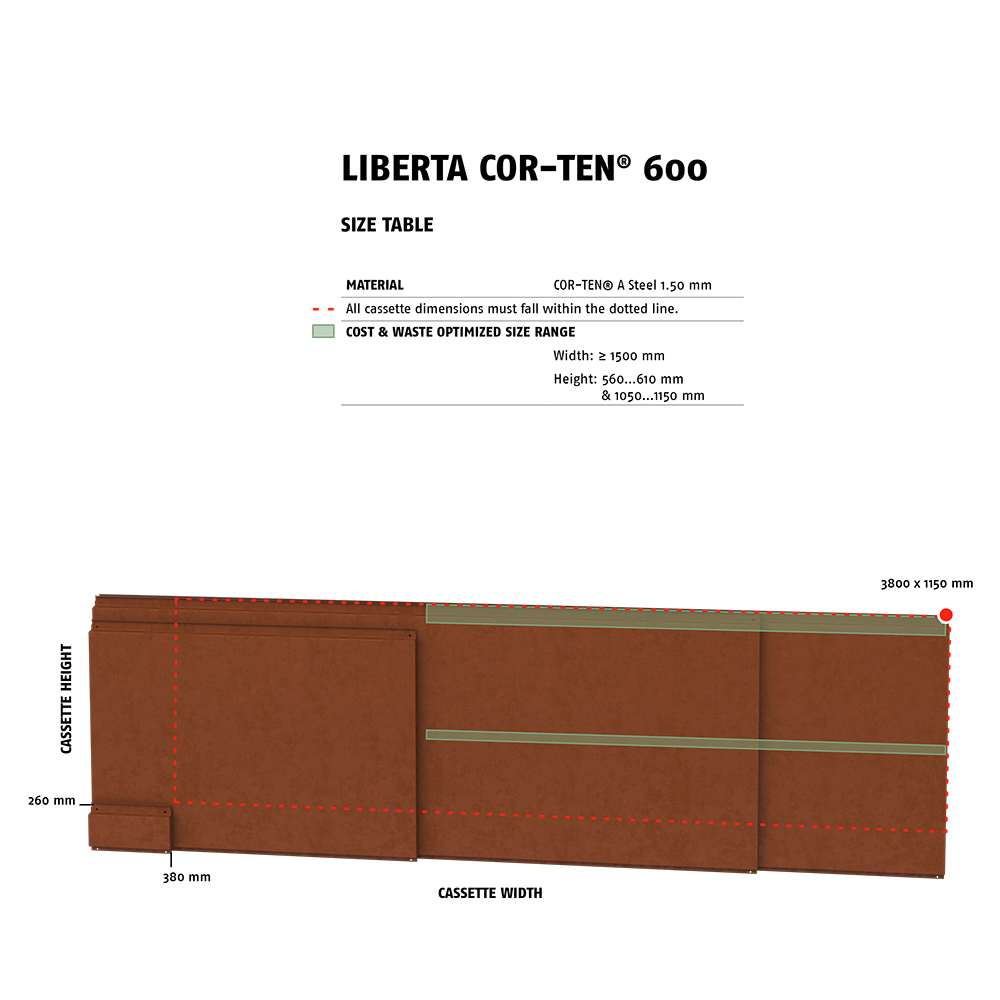

Size table
Click on the picture to see full resolution.
Material:- COR-TEN® A Steel 1.5 mm | ||
![]() |
Materials
Material | Material thickness (mm) | Weight (kg/m2) | Surface treatment | GWP A1-A3 (kg CO2 equiv./m2) | Reaction to fire |
Steel Cor-Ten A * | 1.5 | 13.6 | - | 38.1 | A1 |
Due to its unique chemical composition, Cor-Ten weather-resistant structural steel sheet has a significantly better ability to resist atmospheric corrosion than similar general structural steels. Weather-resistant steel is used in architectural applications without requiring any separate surface treatment. Use of weather-resistant steel thus eliminates the need for surface treatments during the manufacturing and operational periods, in turn lowering the environmental load and costs throughout the product’s life cycle.
The weather resistance of the product is due to its oxide layer i.e. the patina which forms on the steel surface which is resistant to the action of alloys and has low oxygen permeability. The oxide layer is created when weather-resistant steel is wetted and dried repeatedly. The protective surface layer forms in normal weather conditions within 18…36 months. The patina layer is initially reddish brown in colour, becoming darker in tone over the course of time. In industrial environments the patina forms more rapidly on the steel and darkens more than in cleaner rural environments. The protective patina layer cannot form, however, if the surface of the steel is continuously damp or dirty.
Cor-Ten A grade steel is used for the manufacture of panels (S355J0WP-COR-TEN A).
BIM objects

Download BIM objects to your desktop
ProdLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCAD, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is constantly up to date. ProdLib can also be used as a standalone desktop application.
Go to BIM libraryDownload documents
Declaration of performance
pdf, 31.8 KB
Order form
xlsm, 5.1 MB
Maintenance instructions
pdf, 70.3 KB
Accessory documents
pdf, 4.1 MB
References
-

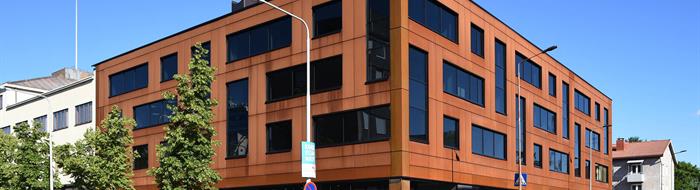

Kymen Lukko, commercial and school building
Expressively vertically and horizontally installed and customized Cor-Ten® 600 cassettes make the façade of this renovation project interesting. The Kymen Lukko...
-

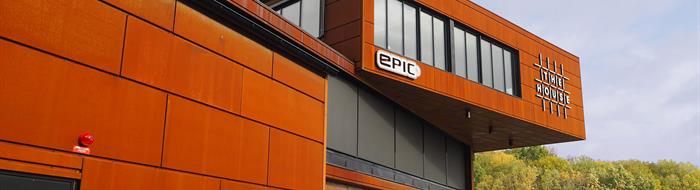

Primo office building
Its shape and facade materials give the Primo office building a striking impact. Cor-Ten weather-resistant steel was selected for the building’s facade.
-

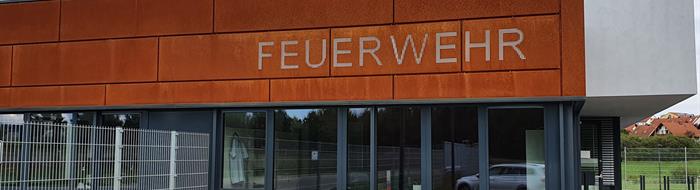

Fire department Langenzenn
Ruukki delivered facade cladding for a new building of the fire department and city archives in Langenzenn, Germany. Around 650 m2 of Liberta Cor-Ten 600 rainsc...
-

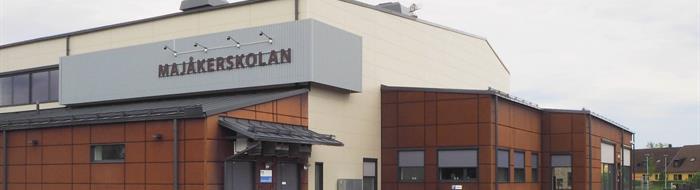

Public building – Majåkerskolan school
Ruukki supplied Liberta Cor-Ten 600 rainscreen panels and substructure for a façade for a new building.
-
Joint building of the Emergency Response Centre and the Rescue Board in Tartu, Estonia
The building complex consists of a 3-storey building housing the Southern Emergency Response Centre, the Southern Rescue Centre, the Annelinna Rescue Command an...
