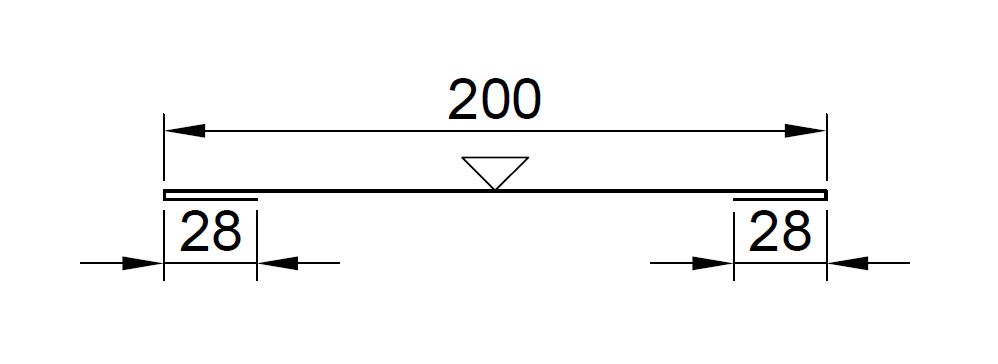

Invisible vertical joint flashing EA1JVI
Invisible vertical joint flashing EA1JVI for listing the vertical seam between the SPA panels without visible fixing screws. Flush mounting washers are used to fasten the panels according to Invisible flashing details and instructions.
The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.
Properties
Product name | Invisible vertical seam flashing EA1JVI |
Length | 1240 mm |
Material thickness | 0,6 mm |
Weight | 1.4 kg/pcs |
Note:
- There are two mounting holes at the top of the list, only to one of which becomes a screw (1 screw / strip).
- Recommended screw type: List screw S1E42013GE 1000.
- All list screws are hidden after installation.
- Invisible vertical base flashing EA1JVB4 is required to attach this list.
- The length of the list includes an overlap of 40 mm.
Coatings, profiling and colors
Coating | Thickness (mm) |
GreenCoat Pural BT | RR20, RR21, RR22, RR23, RR29, RR33, RR35, RR40, RR41, RR45 |
Polyester | RR20, RR21, RR946 |
RR20 White
RR21 Light Grey

RR22 Grey
Graphite ~ RAL 7024
RR29 Red

RR33 Black
RR35 Blue

RR40 Silver

RR41 Dark silver

RR45 Metallic graphite

RR946 Metallic silver
