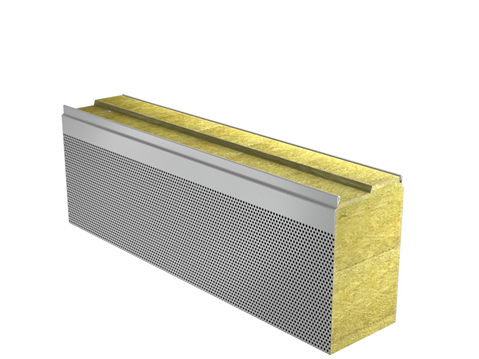

Ruukki Sono acoustic element

Our new sound-absorbing element is designed to deliver exceptional acoustic comfort, for versatile applications. The high-quality mineral wool core effectively dampens sound creating a quieter, more comfortable, and environmentally friendly space—whether in offices, sports and multipurpose buildings, or industrial facilities. Its robust construction and fire resistance provide added protection and peace of mind.

Application:

  • Internal walls

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties



Model nameRuukki Sono acoustic element
Standard module width1200 mm
Minimum length2000 mm
Maximum length9000 mm
External facing thickness0,5 mm
Internal facing thickness0,5 mm



Thickness100150
Weight (kg/m2)17.422.4
U-value (W/m2K)0.400.26
Sound insulation Rw (dB)3232
Reaction to fireC-s1, d0C-s1, d0
GWP-total, A1-A3 (kg CO₂ₑ/m²)29.529.5



Wall fire resistance values & max span horizontal / vertical orientation (m):100150
EI 304.0/-4.0/-



Detailed information regarding the application of fire resistance ratings can be obtained from Ruukki Sales.

All properties are declared in accordance with EN 14509 and related standards.

Sound absorption values

Absorption coefficient and class for construction

Class A, αw 0,90



f(Hz)
αp
1/1
1250,70
2500,95
5000,95
10000,90
20000,85
40000,80

Materials


FacingCoatingGloss level (GU)Corrosivity categoryUV resistance Colours
InternalPolyester35C3-RR20, RR21
Internal
(acoustic)*
Polyester35C2RR20, RR21



* Suitable for use in normal dry indoor environments. RR20, RR21 stock colors, other options available by contacting a Ruukki sales representative.

Coatings and colours



Profile variations

ruukki_sandwich_profiles_r150_200px ruukki_sandwich_profiles_r200_200px ruukki_sandwich_profiles_r600_200px ruukki_sandwich_profiles_flatf_200px
Rib 150 Rib 200 Rib 600 Flat F
