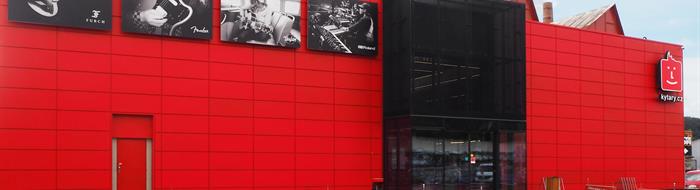

Liberta original 102

Create a genuine and distinct layout with the Liberta™ original 102 rainscreen panel for ventilated steel and aluminium facade systems.



Ruukki® emotion

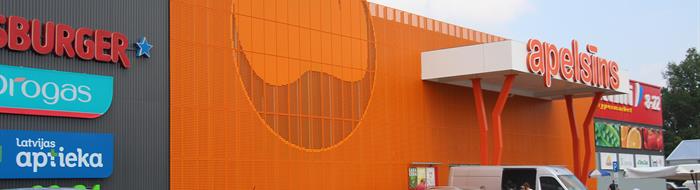

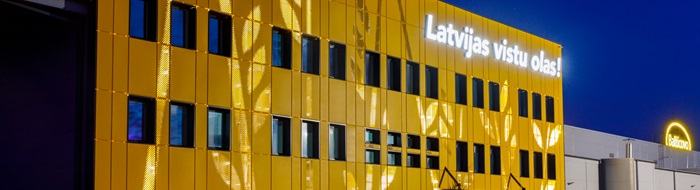

Also available with perforation and backlighting.

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

DDEDIT_Liberta original 102.ashx

Model name
Liberta original 102
Depth
20, 25, 30 mm
Horizontal joint
20, 25, 30 mm
Vertical joint
20, 25, 30 mm
Fastening Style
Standard fix






Perforation layout

perforation

Dimension/holemm
a≥10
b≥10
cd+15, d+25, d+30
d12, 16, 20, 30


Symmetrical perforation: Fully perforated in symmetrical square layout. Only 1 hole size (d) and distance (a, b, c) per product.

Art perforation: Fully or partly perforated in freely chosen locations. All hole sizes (d) and distances (c) available per product.


Material steel 1.20 mm, panel sizes

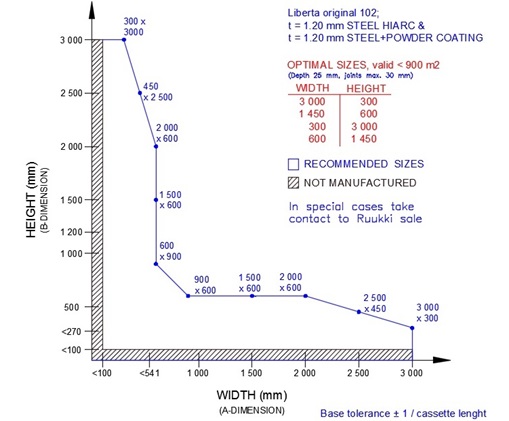

Liberta panel 102 size table

Liberta-original-100-102-panel-sizes-steel.ashx

Material aluminium 1.50 mm, panel sizes

Liberta-original-100-102-sizes-aluminium.ashx





12;16;20;30
12;16;20;30





Materials

MaterialMaterial thickness (mm)Weight (kg/m2)Surface treatment Available with perforationStock materialReaction to fire
Steel1.211.6GreenCoat Hiarc A1
 1.211.6Powder coatingA2 - s1, d0
Aluminium 1.5 5.1 Powder coating  -
 1.5 5.1 PVDF coating  -
Rheinzink1.07.2Pre-patinated (no coating)A1
Copper, Brass & Bronze1.0  Pre-patinated (no coating) A1
 1.5  Pre-patinated (no coating) A1
Aluminium (Brushed design) 1.55.1Brushed with (semi) transparent coating -
Aluminium (Pattern-painted) 1.5 5.1 Painted (multilayer coating)  -
 2.0 6.8 Painted (multilayer coating)  -
Stainless steel 1.08.0Natural matt, bead blasted finish + oxidizing (steel grade 304, 316) -A1
 1.08.0Embossed pattern, oxidizing + brushed finish (steel grade 304, 316)--A1
 1.0 8.0 Natural matt, brushed finish (4N)  (steel grade 304, 316) A1







Coatings and colors

Colour chartCoatingColour
StandardGreenCoat HIARC (steel)RR20, RR21, RR23, RR40, RR41, RR42, RR43
 GreenCoat HIARC Matt (steel)RR40, RR41, RR45
ExtendedGreenCoat HIARC (steel)RR11, RR22, RR24, RR26, RR29, RR30, RR31, RR32,RR33, RR34, RR35, RR36, RR37, RR44, RR45, RR750
More RR colours
 PVDF (aluminium)Most common RAL colours

Powder paint (steel&aluminium)RAL colours

Minimum order sizes:
Standard chart: No limitations
Extended chart:
- GreenCoat HIARC (steel): 900 m2
- PVDF (aluminium): 250 m2
- Powder paint (steel&aluminium):100 m2



BIM objects

To make both architectural and structural design work easier, with accurate product information in 3D form, we offer a selection of CAD / BIM -objects for Autodesk Revit and ArchiCAD.

Download documents

Declaration of performance

Order form

Maintenance instructions

Accessory documents

Technical documents

Fill the form below and we'll provide you a link to document library from where you will get the most important documents e.g.

  • detail drawings
