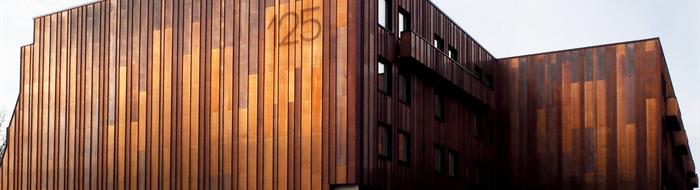

Liberta Elegant 550

Create a classic and harmonious surface with hidden fix Liberta™ Elegant 550 for ventilated steel and aluminium facade systems.



Ruukki® Emotion

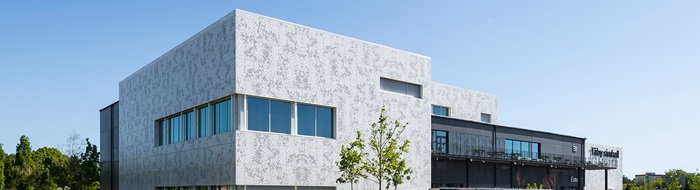

Available also with perforation and backlighting.

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

Liberta 550 dimansional drawings

Model name
Liberta Elegant 550
Depth
25, 30 mm
Horizontal joint
5 mm
Vertical joint
5 mm
Fastening Style
Hidden fix


Perforation layout

perforation

Dimension/holemm
a≥10
b≥10
cd+15, d+25, d+30
d12, 16, 20, 30


Symmetrical perforation: Fully perforated in symmetrical square layout. Only 1 hole size (d) and distance (a, b, c) per product.

Art perforation: Fully or partly perforated in freely chosen locations. All hole sizes (d) and distances (c) available per product.


Panel sizes

Liberta-550-panel-size-table

Materials

MaterialMaterial thickness (mm)Weight (kg/m2)Surface treatment Available with perforationStock materialReaction to fire
Steel1.211.6GreenCoat Hiarc  A1
 1.211.6Powder coating A2 - s1, d0
Aluminium 1.5 5.1 Powder coating
 1.5 5.1 PVDF coating -
Rheinzink1.07.2Pre-patinated (no coating)A1
Copper, Brass & Bronze1.0  Pre-patinated (no coating) A1
 1.5  Pre-patinated (no coating) A1
Aluminium (Brushed design) 1.55.1Brushed with (semi) transparent coating
Aluminium (Pattern-painted) 1.5 5.1 Painted (multilayer coating)
Stainless steel 1.08.0 Natural matt, bead blasted finish + oxidizing (steel grade 304, 316) A1
 1.0 8.0 Embossed pattern, oxidizing + brushed finish (steel grade 304, 316)-A1
 1.0 8.0 Natural matt, brushed finish (4N)  (steel grade 304, 316)-A1







Coatings and colors

Colour chartCoatingColour
StandardGreenCoat HIARC (steel)RR20, RR21, RR23, RR40, RR41, RR42, RR43
 GreenCoat HIARC Matt (steel)RR40, RR41, RR45
ExtendedGreenCoat HIARC (steel)RR11, RR22, RR24, RR26, RR29, RR30, RR31, RR32,RR33, RR34, RR35, RR36, RR37, RR44, RR45, RR750
More RR colours
 PVDF (aluminium)Most common RAL colours

Powder paint (steel&aluminium)RAL colours

Minimum order sizes:
Standard chart: No limitations
Extended chart:
- GreenCoat HIARC (steel): 900 m2
- PVDF (aluminium): 250 m2
- Powder paint (steel&aluminium):100 m2



BIM objects

To make both architectural and structural design work easier, with accurate product information in 3D form, we offer a selection of CAD / BIM -objects for Autodesk Revit and ArchiCAD.

Download documents

Declaration of performance

Order form

Maintenance instructions

Accessory documents

Technical documents

Fill the form below and we'll provide you a link to document library from where you will get the most important documents e.g.

  • detail drawings
  • dimensional drawings
  • instructions and manuals
