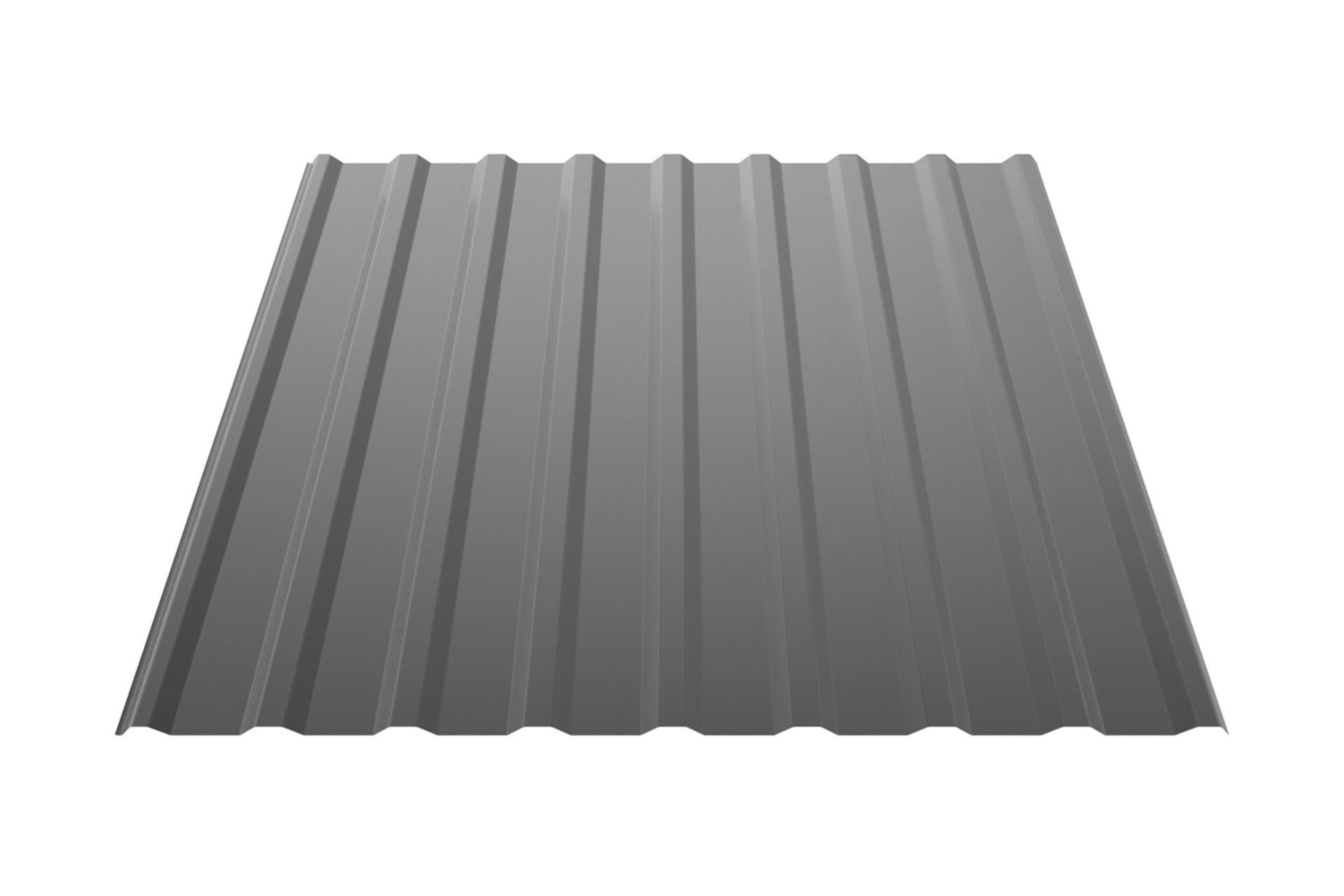

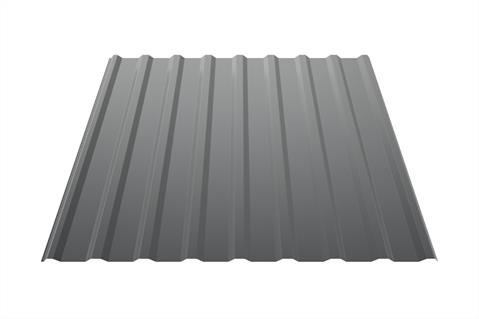

Profiled sheet T20-29W-1095

For all types of buildings

Profile T20 provides a straight lined solution for versatile roofing needs, ranging
from modern private houses to refurbishment of rural buildings. Due to the
linear and rigid form of the sheets, Profile T20 is aesthetically pleasing
and easy to install, not only on new constructions, but also on existing
rafters in renovation applications.

Available in Ruukki Quality Classes/variations:  Ruukki 50 Plus, Ruukki 40, Ruukki 30 and Ruukki 30 Matt.

Product colour chart availability:

Ruukki 50 Plus, Ruukki 40, Ruukki 30 Matt:  RR2H3 Anthracite, RR29 Red, RR23 Dark Grey, RR32 Brown, RR33 Black, RR750 Tile Red, RR887 Chocolate Brown

Ruukki 30: RR2H3 Anthracite, RR29 Red, RR23 Dark Grey, RR32 Brown, RR33 Black, RR750 Tile Red, RR887 Chocolate Brown, RAL9006 Silver, RAL9010 White

Submit your request
The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

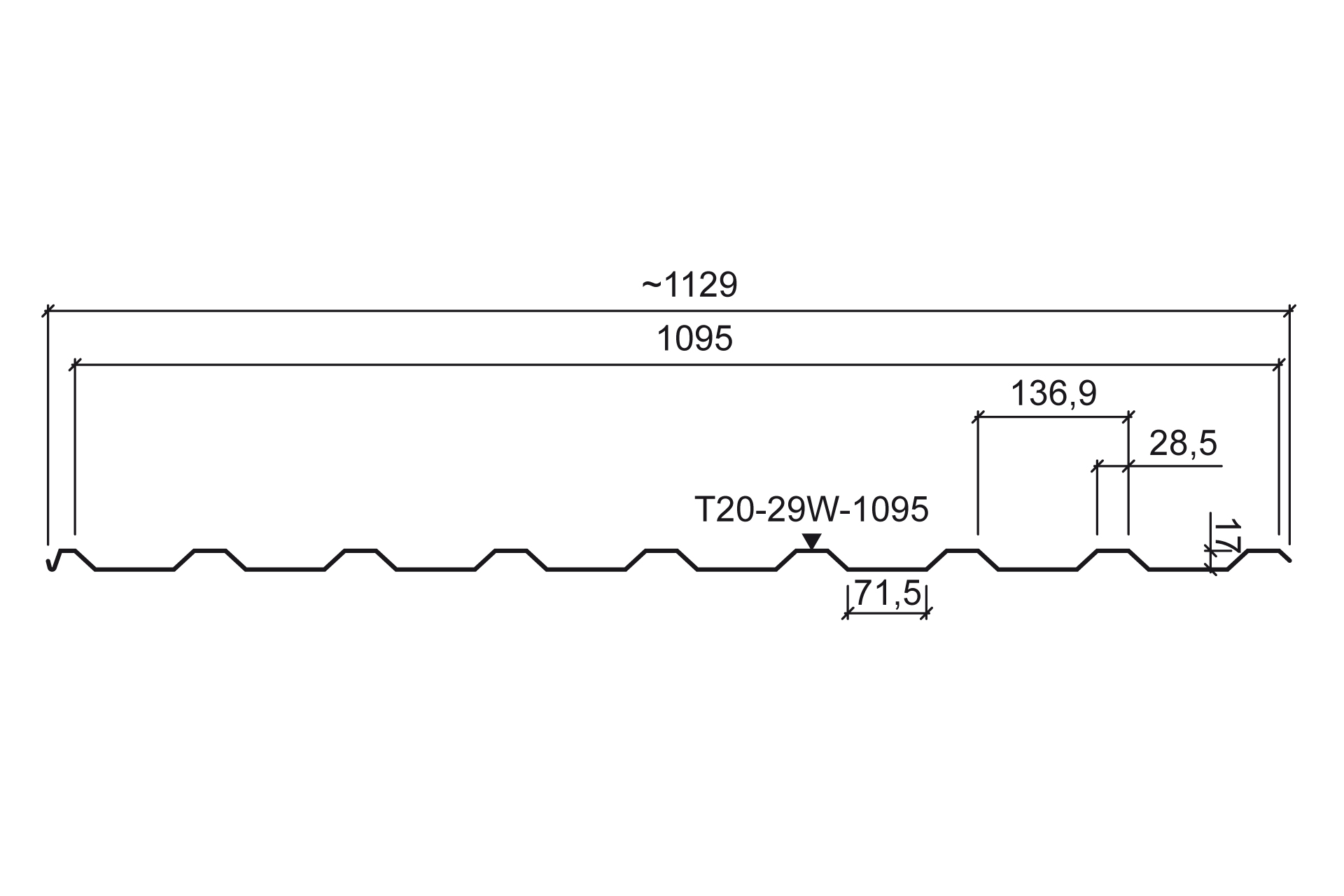

Properties

Product code
T20-29W-1095
Profile Height
17 mm
Width of crown
28.5 mm
Effective width
1095 mm
Total width
1129 mm
Maximum length
12000 mm
Minimum length
600 mm
Material thickness / weight per m2
0.5/4.5;
Other technical information
Minimum slope 6° (Suggestive value. Please check your local regulations and instructions)

Coatings and colors

Download documents
