Ruukki acoustic cladding 50 mm

All Ruukki design and low profiles with 30% continuous perforation and suitable background insulation layer of 50 mm removes flutter echoes between vertical parallel surfaces and improves absorption properties of both wall and ceiling surfaces.

This solution is optionally available with following sustainable features:

  • Steel facings made of recycled steel (SSAB Zero) for significantly lower CO2 emissions and high circularity (Ruukki LowCarbon)



The information on our web site is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Structure

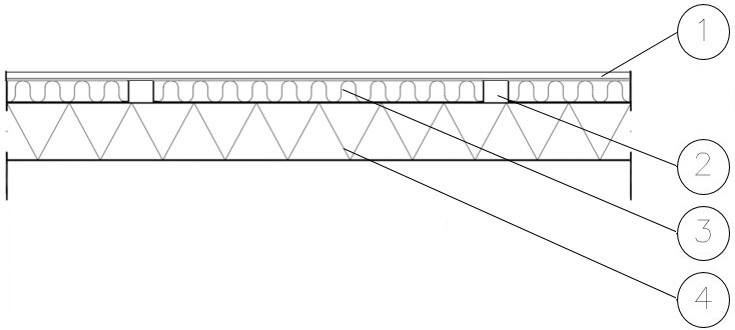

  1. Ruukki design profile or low profile with 30 % perforation
  2. Acoustic fabric
  3. Hat profile 0,6 mm; h = 50 mm, w = 70 mm
  4. Low density rock wool ~ 25 kg/m³, not in Ruukki delivery
  5. Base structure: Ruukki sandwich panel (SPA150E) / all kind of base structure

Sound absorption values

Absorption coefficient and class for construction

(Below values valid with all kind of base structure)

f(Hz) 125 250 500 1000 2000 4000
αs 0,05 0,22 0,49 0,90 0,98 0,90



Practical sound absorption coefficient αp

(Ruukki Acoustic Cladding 50mm: class D, αw = 0,50(MH))

f(Hz) 125 250 500 1000 2000 4000
αp 0,05 0,20 0,50 0,90 1,00 0,90



Sound absorption performance of Ruukki acoustic claddings 50mm and 100mm



Sound insulation values

Airborne sound insulation value improvement

(Values below are measured with Ruukki sandwich panel (SPA150E) base structure, similar improvement with all sandwich panels.)

f(Hz) R(dB)
1/3
R(dB)
1/1
F B
50 32,2

63 28,2 19,4
80 14,9

100 21,1

125 23,0 22,1
160 22,3

200 23,9

250 27,9 26,6
315 30,7

400 34,2

500 37,2 36,0
630 37,5

800 32,7

1000 30,0 32,7
1250 40,5

1600 46,1

2000 45,5 46,8
2500 49,9

3150 56,3
x
4000 62,2 59,8 x
5000 66,6
x x

Note. Signs F and B  indicate that the declared result is an underestimate  in this frequency band. The true value is larger.


Rw(C;Ctr) = 35 (-2;-5) dB
