C TIPO ILGINIAI

Mūsų siūlomi ilginiai yra paruošti montavimui, tinkami naudoti apšiltintiems ir neapšiltintiems stogams ir sienoms.

Pasirinkto ilginio storis ir ilgis priklauso nuo perdangos ilgio ir apkrovų. Projekto optimizavimui naudokite mūsų „PurCalc“ skaičiavimo programą.

Naudojimas:

  • Pramoniniams pastatams
  • Angarams ir sandėliams
  • Priestatams, rekonstrukcijoms ir renovacijai
  • Ūkiniams pastatams
Šioje interneto svetainėje pateikiama informacija yra paremta mūsų geriausiomis žiniomis ir supratimu. Nepaisant visų pastangų užtikrinti tikslumą, bendrovė neprisiima jokios atsakomybės už bet kokias klaidas arba nepateiktą informaciją ir už jokią tiesioginę arba netiesioginę žalą, susidariusią netinkamai naudojant pateiktą informaciją. Mes pasiliekame teisę keisti turinį.

Savybės



Pavadinimas
C TIPO ILGINIAI
Aukštis
100, 120, 150, 200, 250, 300 mm
Thickness
1.0 - 3.0 mm

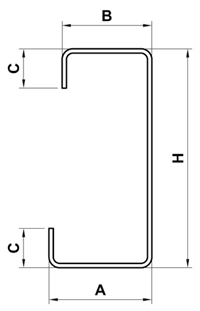

Section type
C tipo profiliai
Minimum Length
1600 mm
Maximum Length
18000 mm
Material
Karšto cinkavimo plieno lakštas Plieno kokybė S350GD+Z275 pagal EN 10346
Tolerances
Dimensions and shape according to EN 1090-4, material thickness according to EN 10143

Design tools

Purcalc-logo

PurCalc software for designing purlins

With the PurCalc software, the user can design roof and wall purlins produced by Ruukki. The purlins are designed as continuous beams. The purlin type must be the same for the whole structure, but the thickness may vary. One of the purlin flanges is assumed to be supported with the profile sheet. The other flange may be either supported or unsupported. Basic loads such as uniform snow load and wind load can be easily given with a few parameters. Also, more complicated load types, such as snowdrift loads, can be given. The software calculates the necessary fasteners for the supporting structure as well.

Go to PurCalc software

Ordering

Please provide the following information when ordering:

  • Type of purlin
  • Thickness
  • Length
  • Number.

In case of pre-punched purlins, please send us purlin drawings showing the location of the holes.



pre-punched-purlins



Pre-punching service

Purlins can be pre-punched in our factory. This makes construction on-site faster and easier. The standardised sizes and locations of holes for fixing screws are presented below. Please contact us for additional information about the pre-punching possibilities.

Holes are made during production at continuous line.

Additional information:

  • Max. material thickness 3mm (for ø 60mm max. material thickness 2mm)
  • Holes can be made in a row
  • Oval and rectangular holes can be rotated by 90°.



Type of holeDiameter (mm)Rotation (°)
Round7-
Round10-
Round12-
Round14-
Round16-
Round18-
Round20-
Round22-
Round26-
Round60-
Oval12×2490
Oval14×2490
Oval16×3590
Oval18×31.790
Oval18×3590
Oval20×3590
Rectangular5×2590

Technical documents

Here you can find all technical documents related to Ruukki's light weight purlins. Documents are organised by document type. Click to enter document library.

Certificates and approvals

Here you can find all certificates and approvals related to Ruukki's light weight purlins. Documents are organised by document type. Click to enter document library.
