Ruukki Primo Skyline 150

Create contemporary facades with new Ruukki Primo Skyline 150 panels. This panel is ideal for vertical orientation and comes with special features:

Big product sizes and excellent surface flatness
Unique tilted joints for low maintenance needs and longer life span (Patent pending)
Continuously adjustable joint width

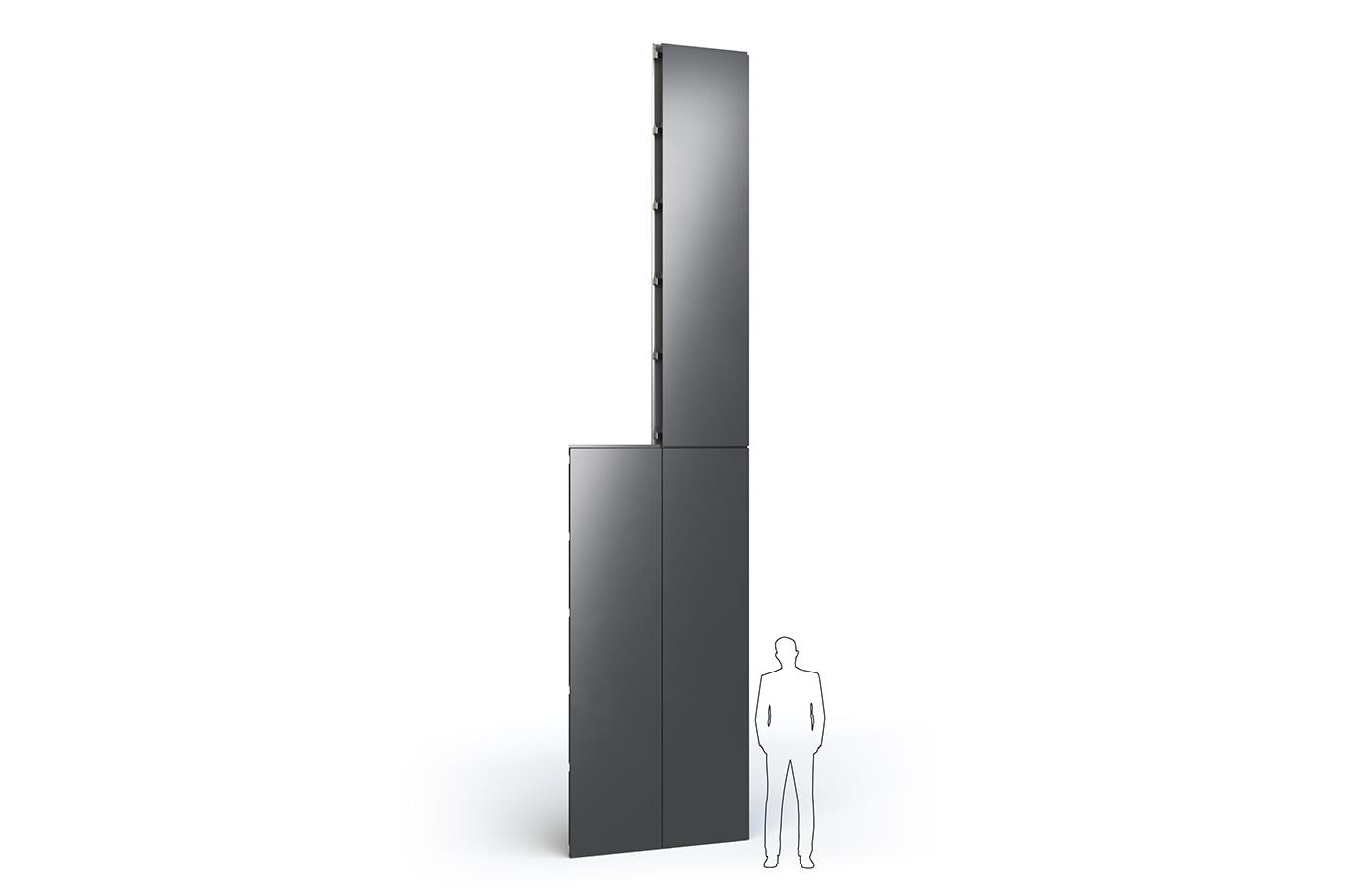

Individually replaceable if damaged

Ruukki® Emotion

Available also with perforation and backlighting.

1 / 6

2 / 6

3 / 6

4 / 6

5 / 6

6 / 6

Save this product information as PDF

Send contact request

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

Model name

Ruukki Primo Skyline 150

Horizontal joint

5...35 mm continuously adjustable

Vertical joint

5...30 mm continuously adjustable

Width

200...1400 mm

Height

200...4000 mm

Depth

40 mm

Fastening Style

Hidden fix

Fastening style

Fastening style	Horizontal joint width	Individually replaceable panel
Concealed	For horizontal joints 5...20 mm	No
Visible	For horizontal joints 21...35 mm	Yes

Perforation layout

Dimension/hole	mm
a	≥10
b	≥10
c	≥ d+25
d	16, 20, 30, 40, 50, 60

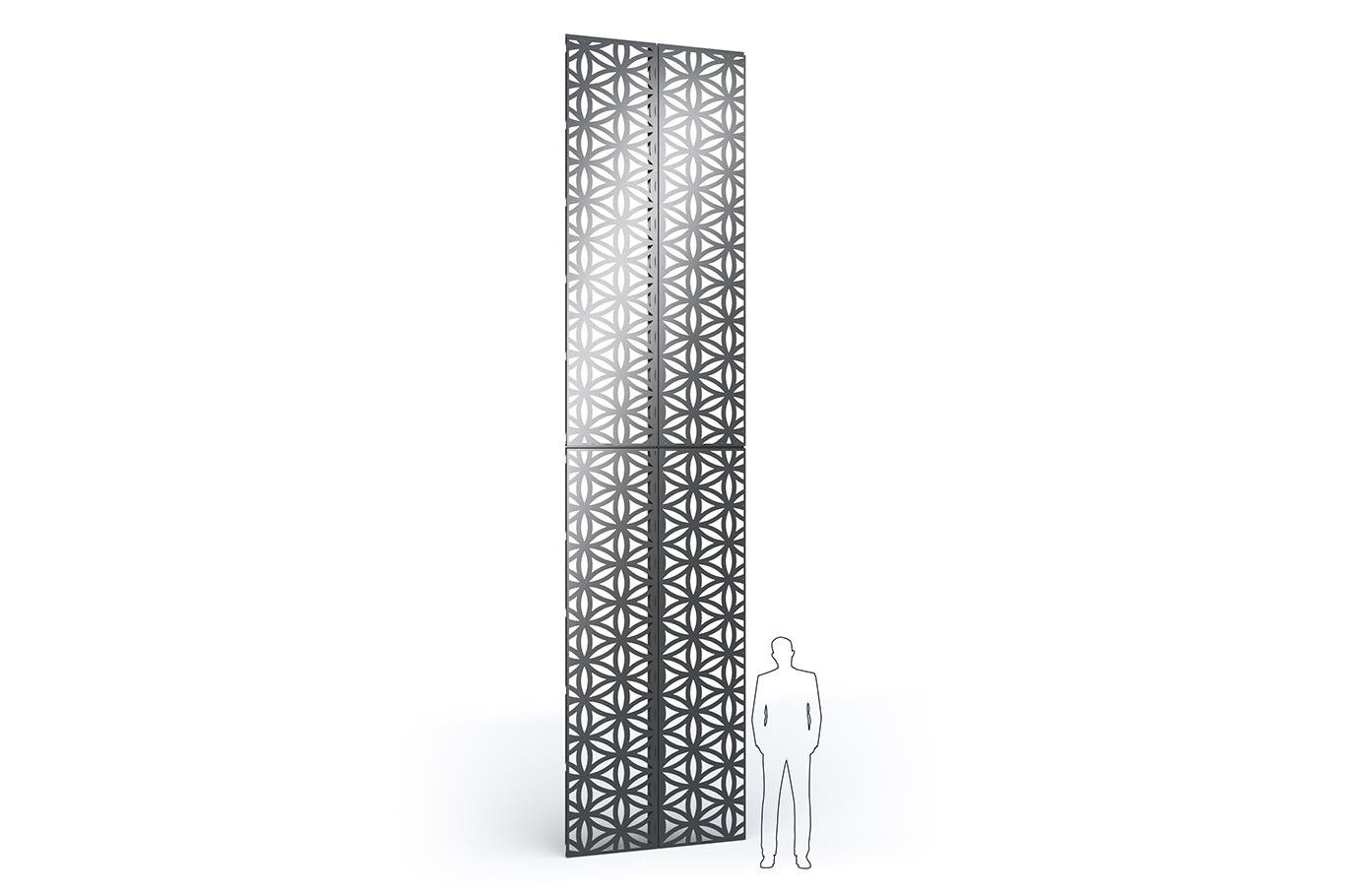

Symmetrical perforation: Fully perforated in symmetrical square layout. Only 1 hole size (d) and distance (a, b, c) per product.

Art perforation: Fully or partly perforated in freely chosen locations. All hole sizes (d) and distances (c) available per product. Also other hole shapes are possible.

Materials

Material	Grade	Material thickness (mm)	Weight (kg/m²)	Surface treatment	GWP A1-A3 (kg CO₂ equiv./m²)	Available with perforation	Minimum order amount (m²)	Reaction to fire
Aluminium composite	A2	4.0	9.6	PVDF	33.0	No	750	A2-s1, d0
Aluminium composite	FR	4.0	9.0	PVDF	51.1	Yes	Standard colours: 150 Extended colours: 750	B-s1, d0

Note: Aluminum composite material in grade A2 is not recommended for coastal areas (<1500m from sea).

Coatings and colors

Coating	Standard colours
PVDF	Metallic White, Dark Grey Metallic, Traffic Red 3020, Pure White 9010, Copper Metallic, Bronze Metallic, Light Grey 7035, Grey Metallic, Anthracite Grey 7016, Umbra Grey 7022, Silver Metallic, Smoke Metallic, Champagne Metallic, Manganese Metallic, Jet Black 9005, Grey Brown 8019, Purple Red 3004, Signal Yellow 1003, Ultramarine Blue 5002, Pure Orange 2004

For extended colour range & other finishes, please click here.

Gloss level: 30 GU

BIM objects

Download BIM objects to your desktop

ProLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCad, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is consistantly up to date. ProdLib can also be used as a standalone desktop application.

Go to BIM library
