Ruukki Primo Skyline 1000

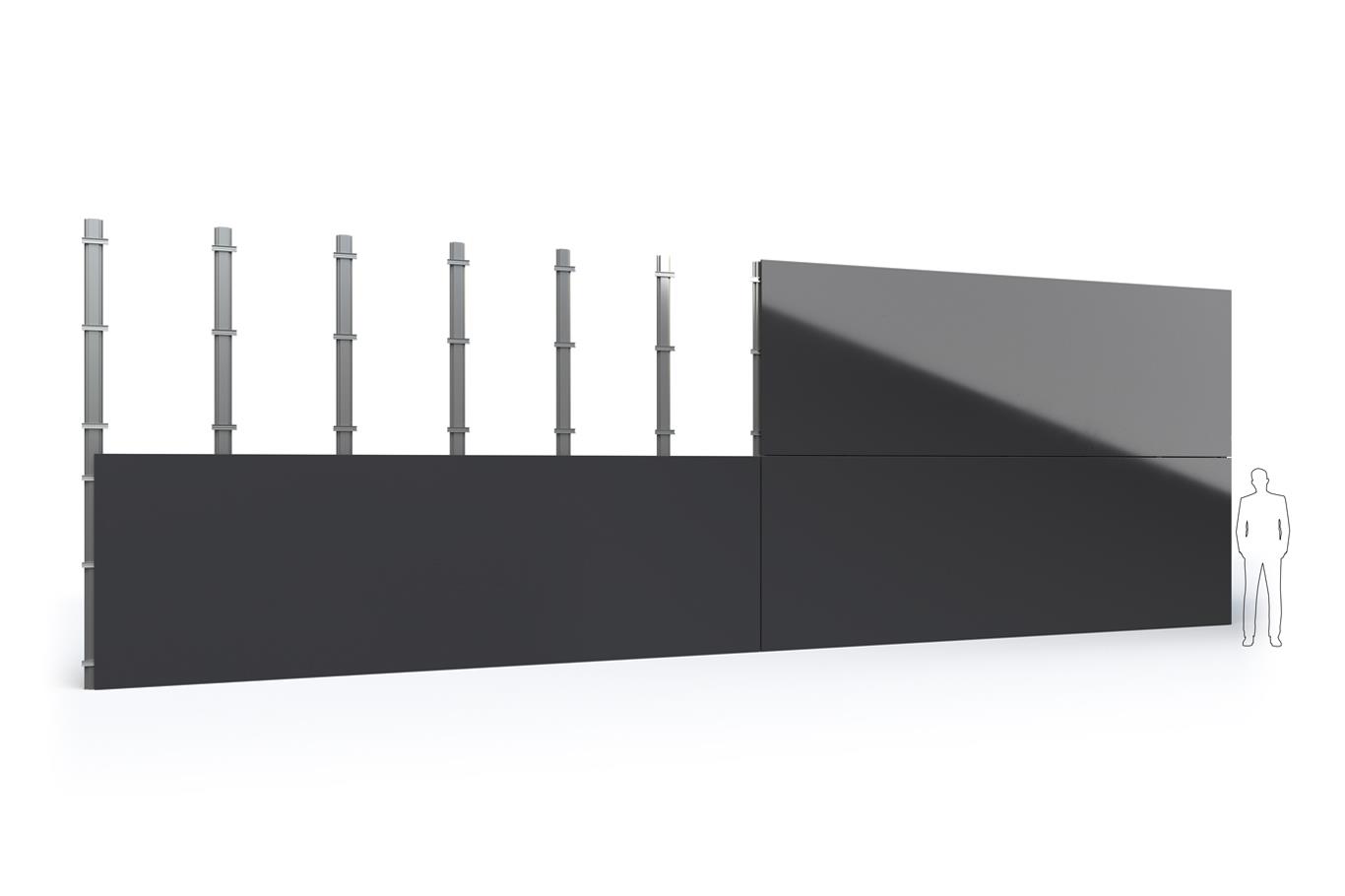

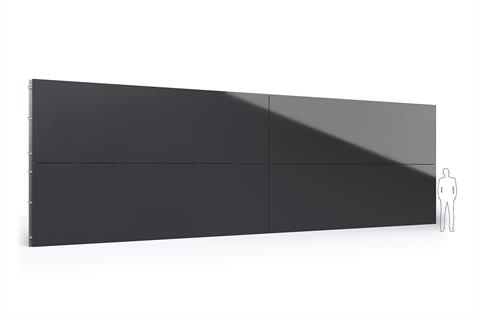

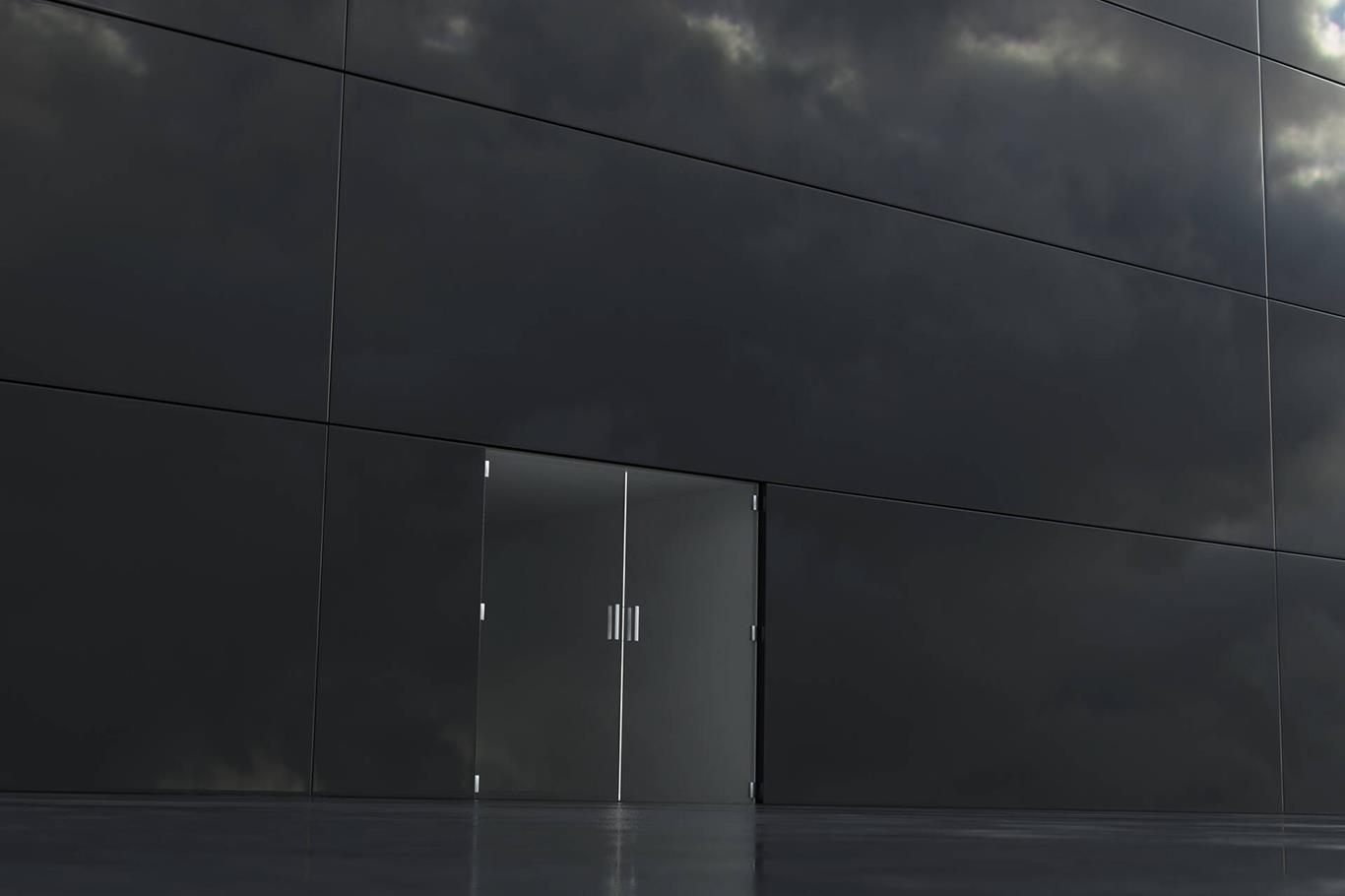

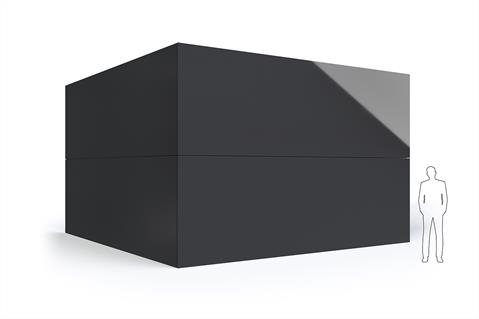

Create contemporary facades with new Ruukki Primo Skyline 1000 panels. This panel is available in exceptionally big sizes and can be used for horizontal and vertical orientation. Panel comes with special features:

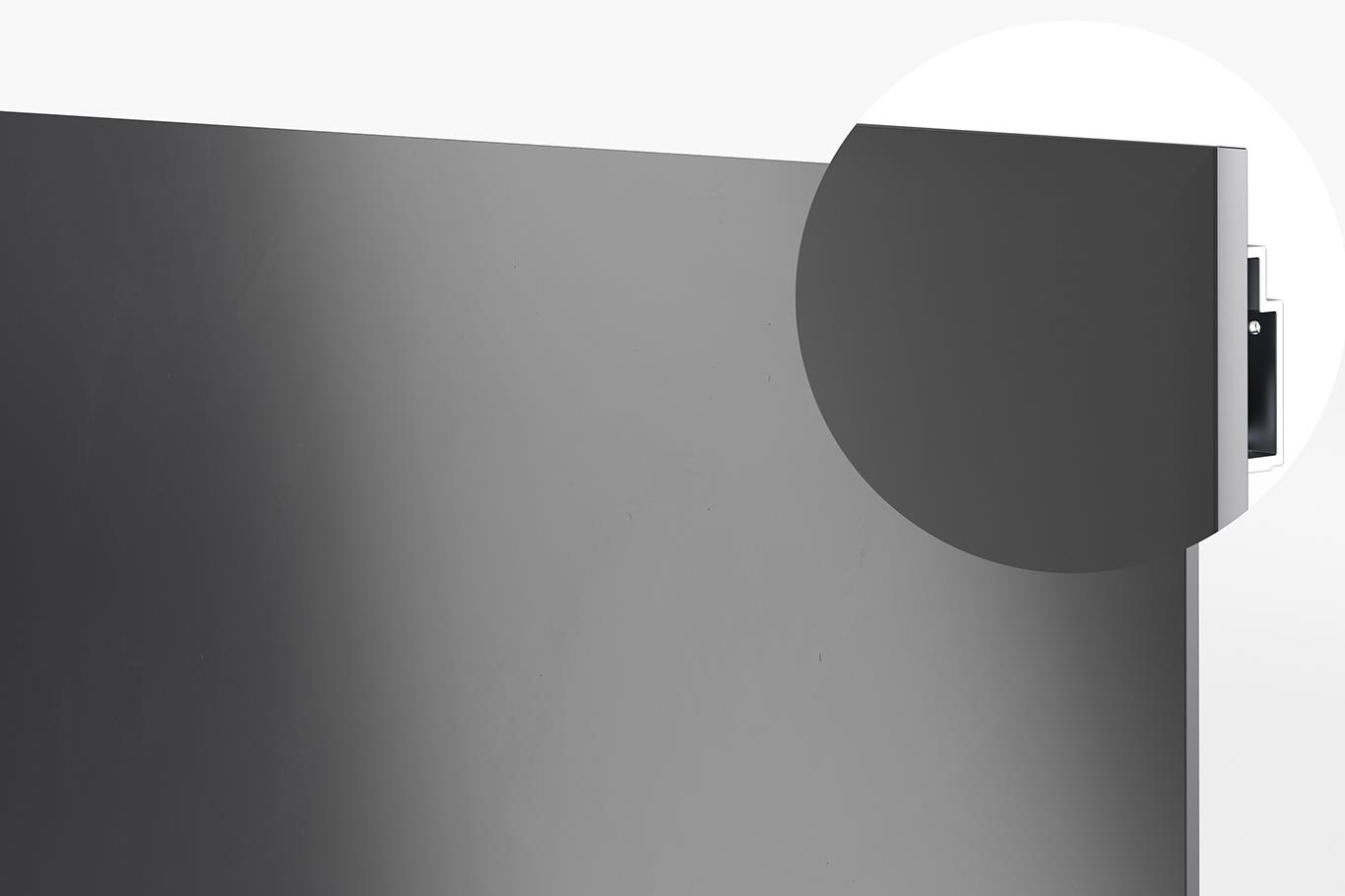

- Unique tilted joints for low maintenance needs
- Double folded edges for better durability
- Continuously adjustable joint width
Individually replaceable if damage
The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.
Properties

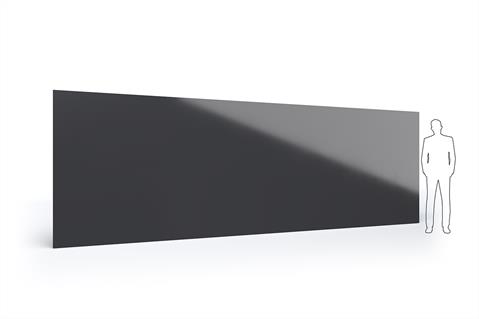

*) maximum size is 6200 x 1900 mm (free orientation)

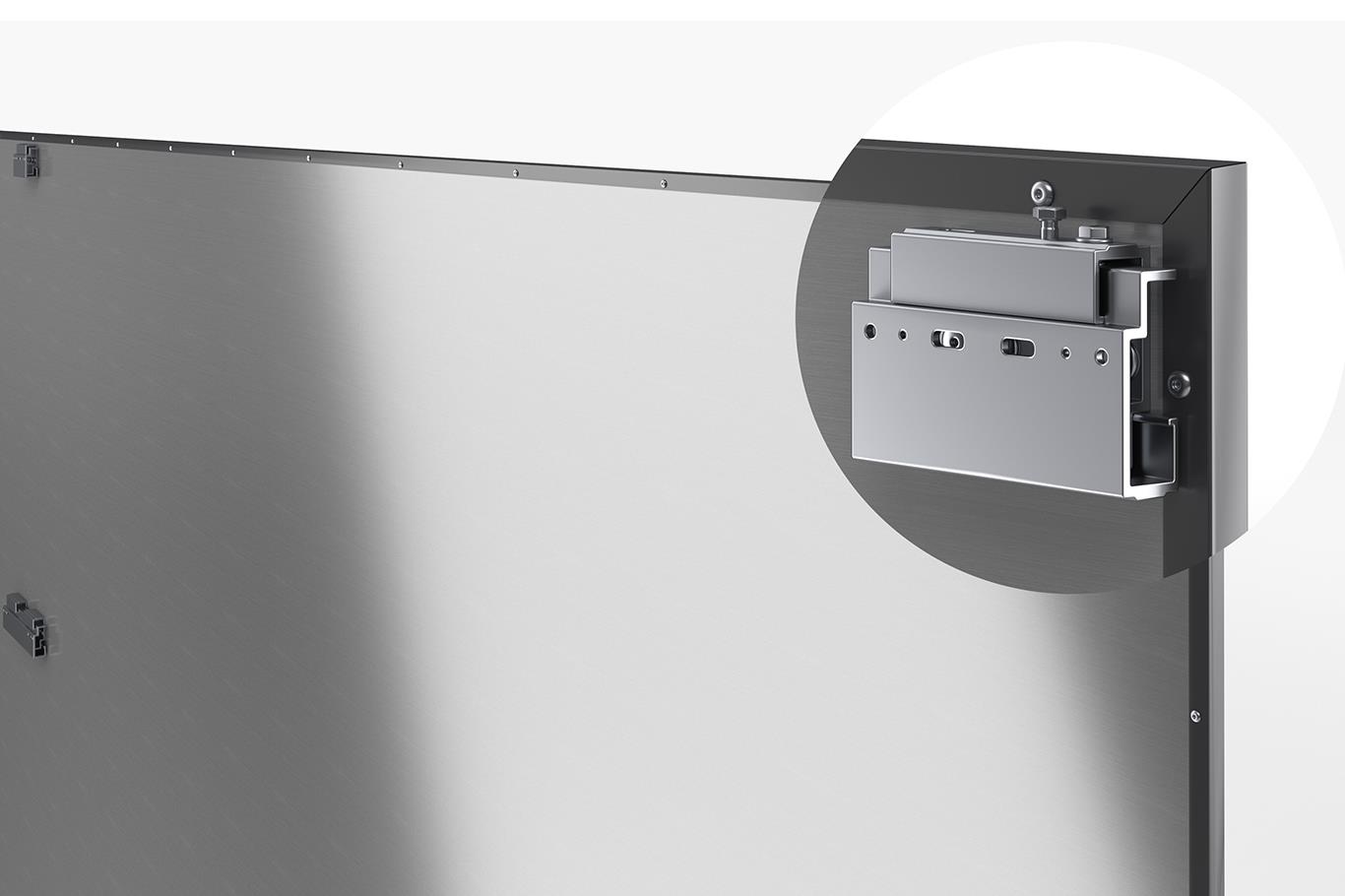

Fastening style
| Fastening style | Horizontal joint width | Individually replaceable panel |
| Concealed | For horizontal joints 5...29 mm | No |
| Concealed | For horizontal joints ≥ 30 mm | Yes |
Materials
| Material | Material thickness (mm) | Weight (kg/m2) | Surface treatment | GWP A1-A3 (kg CO2 equiv./m2) | Available with perforation | Minimum order amount (m2) | Reaction to fire |
| Aluminium honeycomb | 14.0 | 5.2 | PVDF | 63.4 | No | 1000 | A2-s1, d0 |
Coatings and colors
| Coating | Standard colours |
| PVDF | Metallic White, Dark Grey Metallic, Traffic Red 3020, Pure White 9010, Copper Metallic, Bronze Metallic, Light Grey 7035, Grey Metallic, Anthracite Grey 7016, Umbra Grey 7022, Silver Metallic, Smoke Metallic, Champagne Metallic, Manganese Metallic, Jet Black 9005, Grey Brown 8019, Purple Red 3004, Signal Yellow 1003, Ultramarine Blue 5002, Pure Orange 2004 |
For extended colour range & other finishes, please click here.
BIM objects
Download BIM objects to your desktop
ProLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCad, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is consistantly up to date. ProdLib can also be used as a standalone desktop application.
Go to BIM libraryDownload documents
Declaration of performance
Order form
xlsm, 1.0 MB
