Liberta Elegant 500

Create a classic and harmonious surface with hidden fix Liberta Elegant 500 for ventilated steel and aluminium facade systems.

Ruukki® Emotion
Available also with perforation and backlighting.

This product is optionally available with following sustainable features:

Steel facings made of recycled steel (SSAB Zero) for significantly lower CO₂ emissions and high circularity (Ruukki LowCarbon)

1 / 5

2 / 5

3 / 5

4 / 5

5 / 5

Save this product information as PDF

Send contact request

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

Model name

Liberta Elegant 500

Depth

25, 30 mm

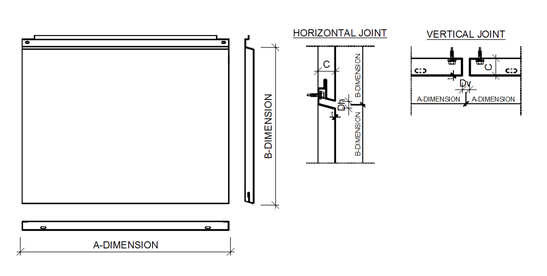

Horizontal joint

5, 10, 15, 20, 25, 30 mm

Vertical joint

5, 10, 15, 20, 25, 30 mm

Fastening Style

Hidden fix

Perforation layout

Dimension/hole	mm
a	≥10
b	≥10
c	≥ d+25
d	16, 20, 30, 40, 50, 60

Symmetrical perforation: Fully perforated in symmetrical square layout. Only 1 hole size (d) and distance (a, b, c) per product.

Art perforation: Fully or partly perforated in freely chosen locations. All hole sizes (d) and distances (c) available per product.

Size table

Click on the picture to see full resolution.

Material:

- HIARC coated steel 1.2 mm

- Powder coated steel 1.2 mm

- Aluminum 2.0 mm

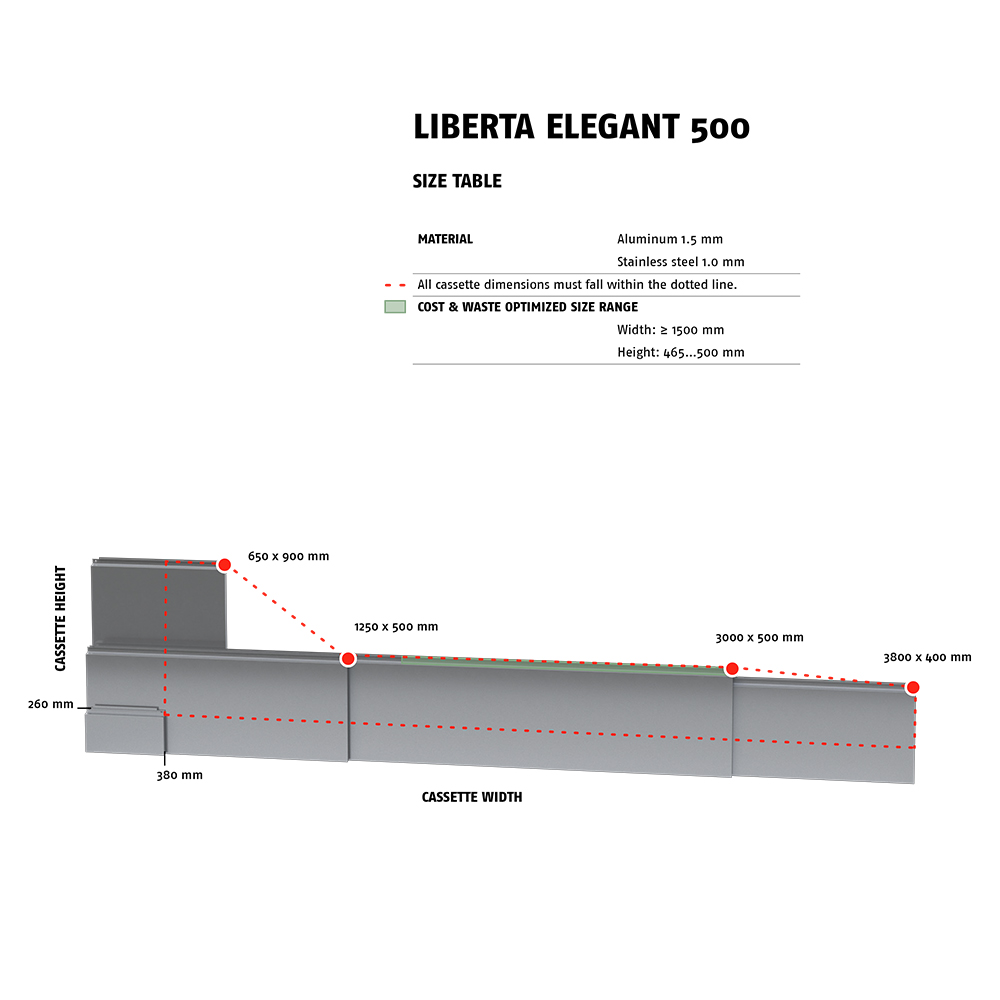

Material:

- Aluminum 1.5 mm

- Stainless steel 1.0 mm

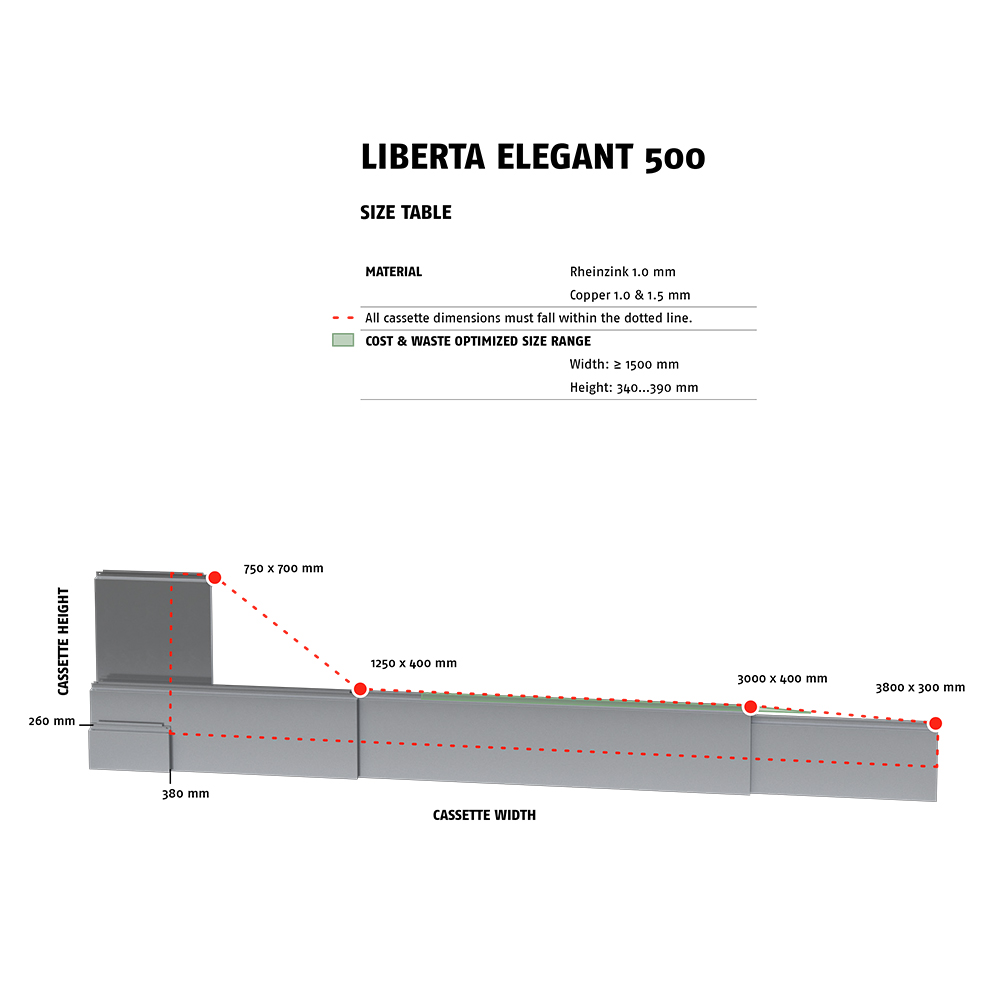

Material:

- Rheinzink 1.0 mm

- Copper 1.0 mm

- Copper 1.5 mm

Materials

Material	Material thickness (mm)	Weight (kg/m²)	Surface treatment	GWP A1-A3 (kg CO₂ equiv./m²)	Available with perforation	Minimum order amount (m²)	Reaction to fire
Zero Steel (LowCarbon)	1.2	11.4	GreenCoat Pural BT (Satin, Metallic)	~14.5 (estimation) *	No	900 (limited availability)	A1
Steel	1.2	11.4	GreenCoat Pural BT (Satin, Metallic)	35.5	No	Standard colours: No limitations Extended colours: 900	A1
	1.2	11.4	Powder coating	35.5	Yes	100	A2 - s1, d0
Aluminium	2.0	6.5	Powder coating	64.5	Yes	250	-
	2.0	6.5	PVDF coating	43.3	Yes	250	-
	1.5	4.9	Powder coating	48.6	Yes	250	-
	1.5	4.9	PVDF coating	32.7	Yes	350	-
Rheinzink	1.0	8.7	Pre-patinated (no coating)	41.3	Limited	100	A1
Copper - Nordic Standard	1.5	16.2	Pre-patinated (no coating)	11.6	Limited	60	A1
	1.0	10.8	Pre-patinated (no coating)	7.74	Limited	60	A1
Copper - Nordic Green, Blue or Brown	1.5	16.2	Pre-patinated (no coating)	12.7	Limited	60	A1
	1.0	10.8	Pre-patinated (no coating)	8.49	Limited	60	A1
Brass - Nordic Brass	1.5	15.7	Pre-patinated (no coating)	28.5	Limited	60	A1
	1.0	10.5	Pre-patinated (no coating)	19.0	Limited	60	A1
Bronze - Nordic Bronze	1.5	15.7	Pre-patinated (no coating)	16.3	Limited	60	A1
	1.0	10.5	Pre-patinated (no coating)	10.9	Limited	60	A1
Bronze - Nordic Royal	1.5	15.7	Pre-patinated (no coating)	37.7	Limited	60	A1
	1.0	10.5	Pre-patinated (no coating)	25.2	Limited	60	A1
Stainless steel	1.0	9.5	Smooth (2B)	38.0	Limited	125	A1
	1.0	9,5	Wet grinded (4N)	38.0	Limited	125	A1

*) Calculations have been made using estimate for SSAB Zero™ recycled steel and data from Ruukki’s current Environmental Product Declaration (EPD) documents. The calculations are based on current estimates (3/2025).

Coatings and colors

GreenCoat Pural BT (Standard colours)

Gloss level: 20 GU (Satin) / 40 GU (Metallic)

Extended colours

BIM objects

Download BIM objects to your desktop

ProLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCad, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is consistantly up to date. ProdLib can also be used as a standalone desktop application.

Go to BIM library
