Liberta Original 102 Grande

Create a genuine and distinct large scaled layout with the Liberta Original 102 Grande for ventilated steel facade systems.

1 / 4

2 / 4

3 / 4

4 / 4

Save this product information as PDF

Send contact request

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

DDEDIT_Liberta original 102.ashx

Model name

Liberta Original 102 Grande

Depth

20, 30 mm

Horizontal joint

20, 25, 30 mm

Vertical joint

20, 25, 30 mm

Fastening Style

Standard fix

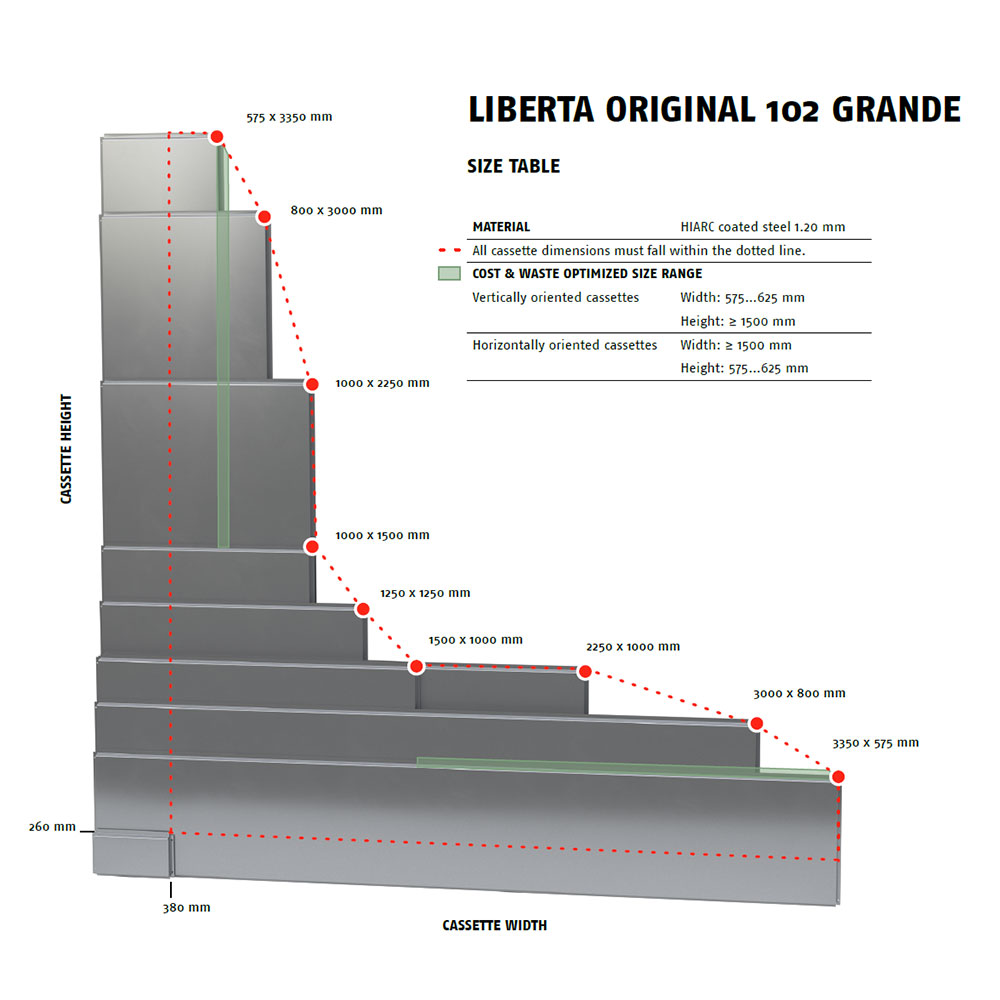

Size table

Click on the picture to see full resolution.

Material:

- HIARC coated steel 1.2 mm

Materials

Material	Material thickness (mm)	Weight (kg/m²)	Surface treatment	GWP A1-A3 (kg CO₂equiv./m²)	Reaction to fire
Steel	1.2	13.7	GreenCoat Pural BT (Satin, Metallic)	31.7	A2-s2, d0

The panel has a 18 mm thick mineral wool board bonded on the reverse side.

Coatings and colors

GreenCoat Pural BT (Standard colours)

Gloss level: 20 GU (Satin) / 40 GU (Metallic)

Extended colours

GreenCoat Pural BT (steel)

BIM objects

Download BIM objects to your desktop

ProLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCad, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is consistantly up to date. ProdLib can also be used as a standalone desktop application.

Go to BIM library
