Design Rome S34



Create a distinctive rhythm with Design Rome™ S34 for ventilated steel facade systems.

Applications: facade and ceiling surfaces.

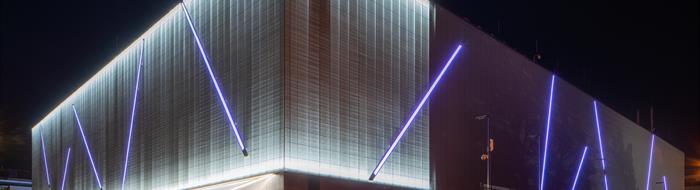

Ruukki® Emotion
Available also with perforation and backlighting.

Ruukki® Acoustic Claddings
Available also with perforation for sound absorption.

This product is optionally available with following sustainable features:

  • Steel facings made of recycled steel (SSAB Zero) for significantly lower CO2 emissions and high circularity (Ruukki LowCarbon)



The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

Cross-section drawing for Design Rome S34 made out of colour coated steel, stainless steel, aluminium or Cor-Ten



S34_section_1250



Cross-section drawing for Design Rome S34 made out of Rheinzink or copper & brass

S34_section_1000

Model name
Design Rome S34
Effective width
898 mm *
Total width
925 mm *
Depth
34 mm
Pitch
82 mm
Minimum length
500 mm
Maximum length
7000 mm
*RHEINZINK, COPPER & BRASS: EFFECTIVE WIDTH 659MM, TOTAL WIDTH 759MM




Perforation layout

design-perforation
10 % perforation, hole size d = 4 mm, centres c = 12 mm
15 % perforation, hole size d = 4 mm, centres c = 10 mm
30 % perforation, hole size d = 4 mm, centres c = 7 mm*

40 % perforation, hole size d = 5 mm, centres c = 7.5 mm

* Standard solution in Ruukki® Acoustic Claddings

Materials

Materials

MaterialMaterial thickness (mm)Weight (kg/m2)Surface treatmentGWP A1-A3 (kg CO2 equiv./m2)Available with perforationMinimum order amount (m2)Reaction to fire
Zero Steel (LowCarbon)0.65.9GreenCoat Pural BT (Satin, Metallic)6.6x2000 (limited availability)A1
Steel0.65.9GreenCoat Pural BT (Satin, Metallic)16.6x
Standard colours - No limitations (except perforated 100)
Extended colours - 2000*
 A1
 0.65.9Powder coating16.6100 A2 - s1,d0
Aluminium 0.7 2.4Powder coating 21.5250 -
 0.7 2.4PVDF coating 4.6750 -
Cor-Ten0.77.0Coating on reverse side17.7xNo limitations (except perforated 100)A1
Rheinzink0.76.3Pre-patinated (no coating)27.0-100A1
Copper - Nordic Standard0.66.7Pre-patinated (no coating)4.34-100A1
Copper - Nordic Green, Blue or Brown0.66.7Pre-patinated (no coating)4.75-100A1
Brass - Nordic Brass0.66.5Pre-patinated (no coating)10.6-100A1
Stainless steel0.54.9Smooth 2B (steel grade 304, 316)17.7-250A1

*) Minimum order amount - 100 m2 for Colours RR22, RR24, RR29, RR32, RR33, RR34, RR35, RR45

Coatings and colors

GreenCoat Pural BT (Standard colours)

Gloss level: 20 GU (Satin) / 40 GU (Metallic)

BIM objects

design-softwares2

Download BIM objects to your desktop

ProLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCad, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is consistantly up to date. ProdLib can also be used as a standalone desktop application.

Go to BIM library

Download documents

Declaration of performance

Design profile S18:

Other design profiles:

Cor-Ten design profiles:

Order form

Maintenance instructions

Accessory documents

Detail drawings and dimensional drawings for facade claddings
