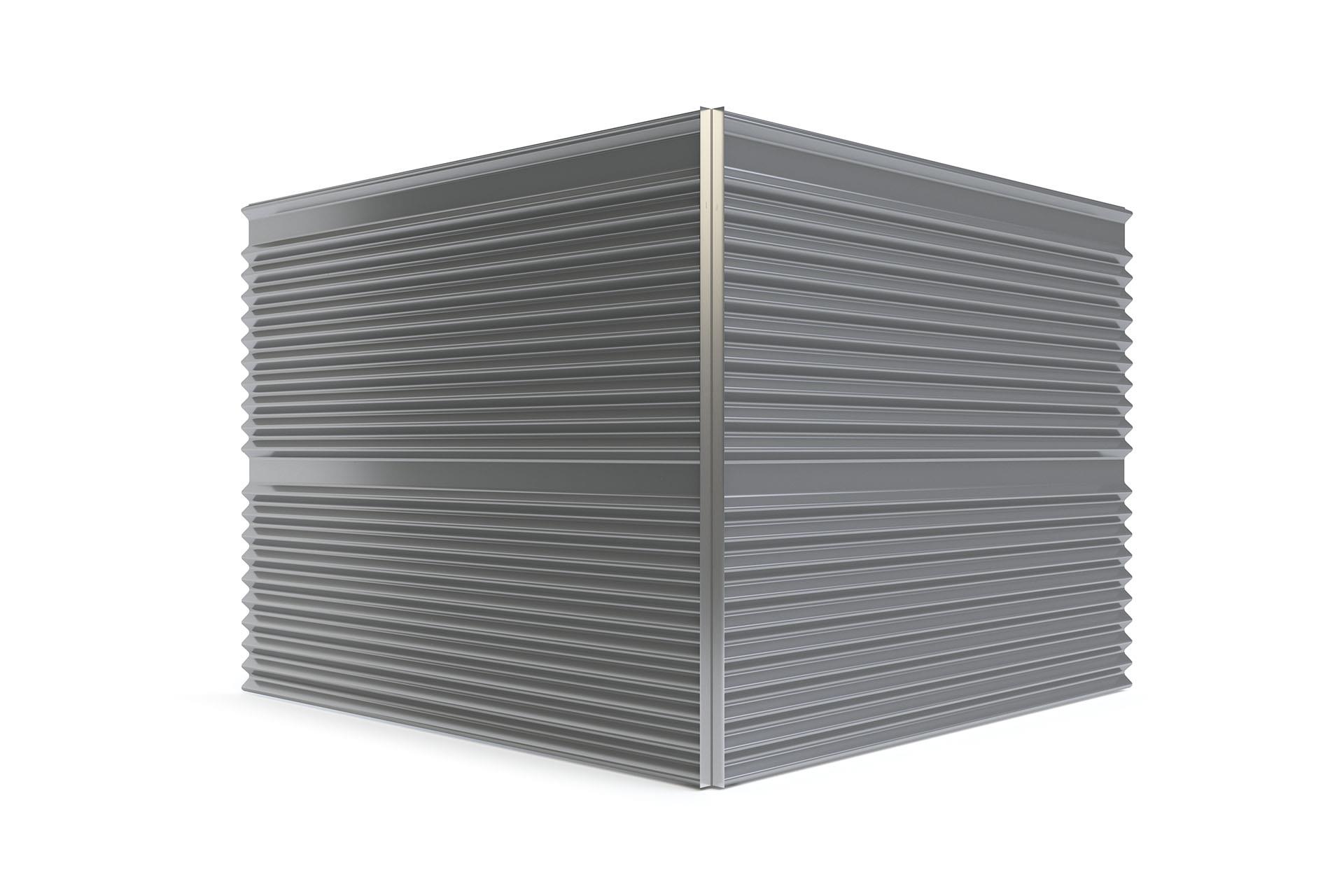

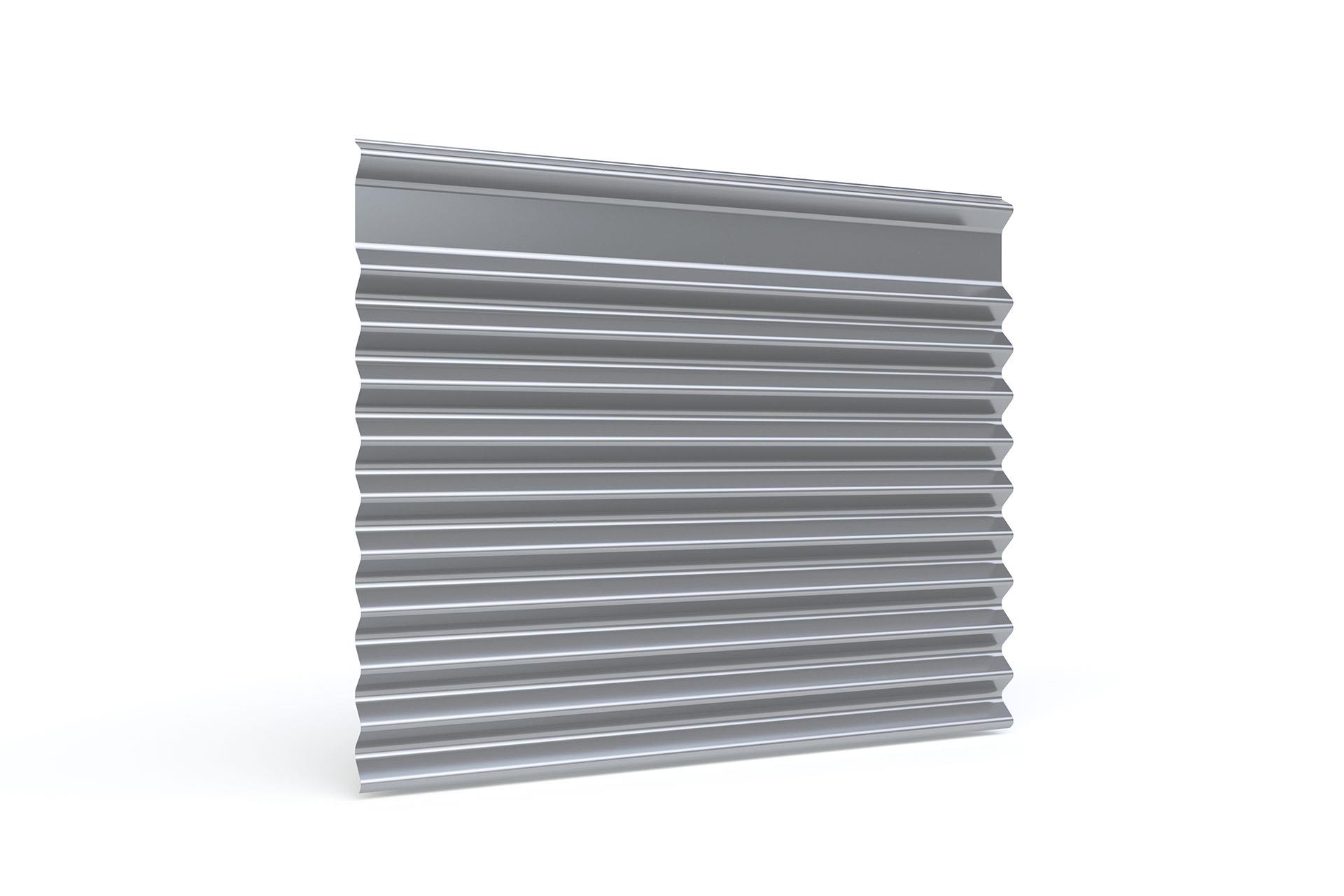

Design Rome S S34

Create a distinctive and variable rhythm with Design Rome™ S S34 for ventilated steel facade systems.

Applications: facade and ceiling surfaces.

Ruukki® Emotion
Available also with perforation and backlighting.

Ruukki® Acoustic Claddings

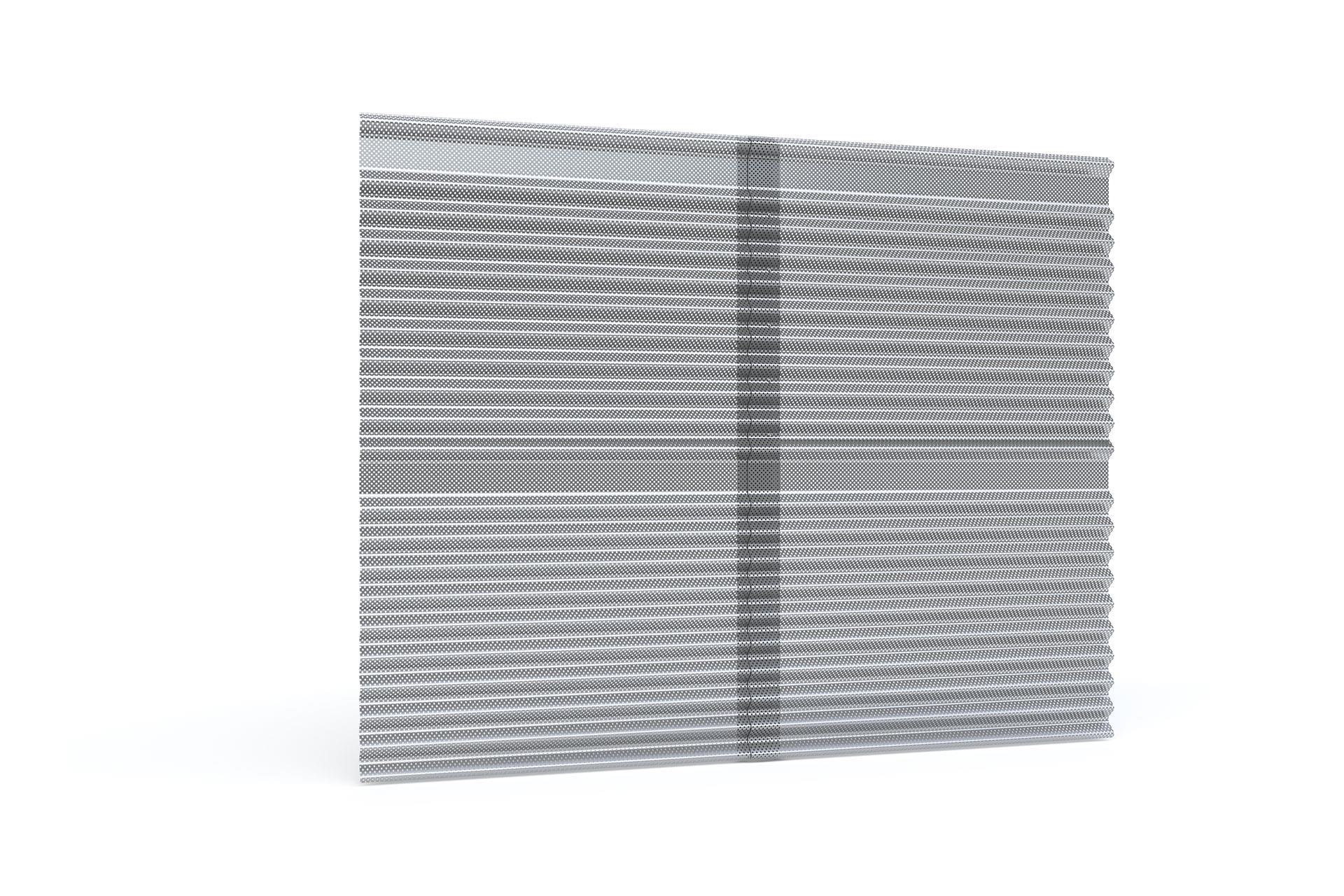

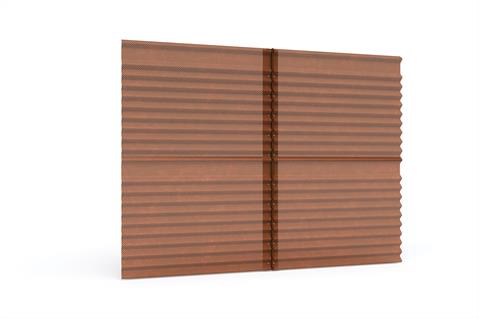

Available also with perforation for sound absorption.

BIM - objects

This product is optionally available with following sustainable features:

Steel facings made of recycled steel (SSAB Zero) for significantly lower CO₂ emissions and high circularity (Ruukki LowCarbon)

1 / 11

2 / 11

3 / 11

4 / 11

5 / 11

6 / 11

7 / 11

8 / 11

9 / 11

10 / 11

11 / 11

Save this product information as PDF

Send contact request

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

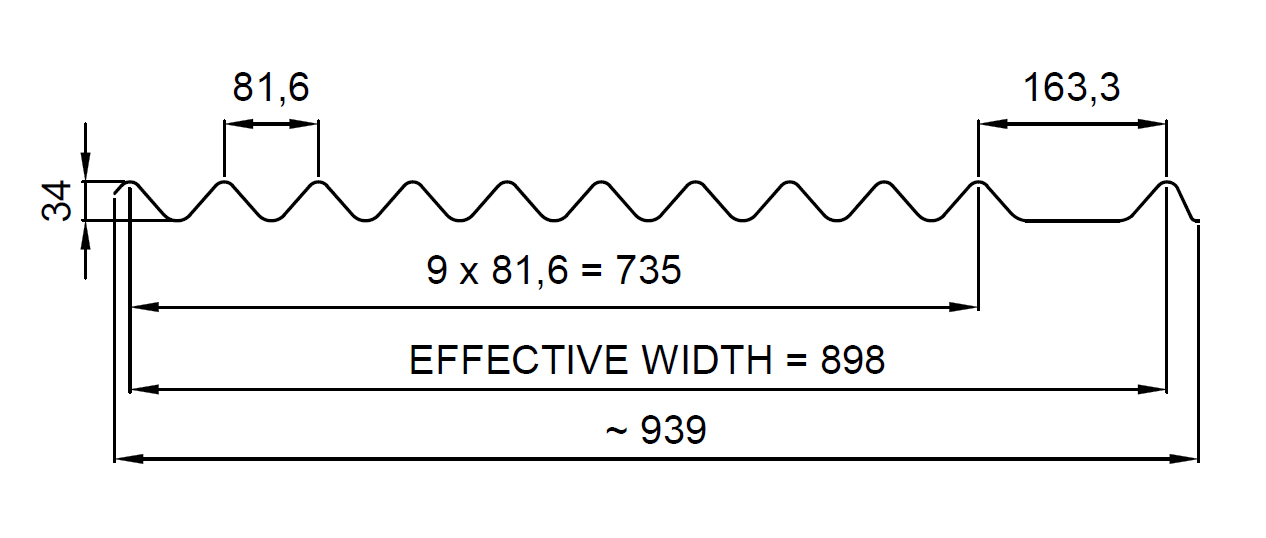

Cross-section drawing for Design Rome S S34 made out of colour coated steel, aluminium or Cor-Ten

Model name

Design Rome S S34

Effective width

898 mm

Total width

939 mm

Depth

34 mm

Pitch

82 mm

Minimum length

500 mm

Maximum length

7000 mm

Perforation layout

10 % perforation, hole size d = 4 mm, centres c = 12 mm

15 % perforation, hole size d = 4 mm, centres c = 10 mm

30 % perforation, hole size d = 4 mm, centres c = 7 mm*

40 % perforation, hole size d = 5 mm, centres c = 7.5 mm

* Standard solution in Ruukki® Acoustic Claddings

Materials

Material	Material thickness (mm)	Weight (kg/m²)	Surface treatment	GWP A1-A3 (kg CO₂ equiv./m²)	Available with perforation	Minimum order amount (m²)	Reaction to fire
Zero Steel (LowCarbon)	0.6	5.9	GreenCoat Pural BT (Satin, Metallic)	6.6	x	2000 (limited availability)	A1
Steel	0.6	5.9	GreenCoat Pural BT (Satin, Metallic)	16.6	x	Standard colours - No limitations (except perforated 100) Extended colours - 2000*	A1
	0.6	5.9	Powder coating	16.6	x	100	A2 - s1,d0
Aluminium	0.7	2.	Powder coating	21.5	x	250	-
	0.7	2.4	PVDF coating	4.6	x	750	-
Cor-Ten	0.7	7.0	Coating on reverse side	17.7	x	No limitations (except perforated 100)	A1

*) Minimum order amount - 100 m² for Colours RR22, RR24, RR29, RR32, RR33, RR34, RR35, RR45

Coatings and colors

GreenCoat Pural BT (Standard colours)

Gloss level: 20 GU (Satin) / 40 GU (Metallic)

Extended colours

BIM objects

Download BIM objects to your desktop

ProLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCad, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is consistantly up to date. ProdLib can also be used as a standalone desktop application.
